Filtex FX 825 Dust Extractor

Stock No
EW1534
Manufacturer
Filtex
Model
FX 825
Year of Manufacture
1996
Serial
8166
New or Used
Used (Second Hand)
Approx Duty CFM / M³/Hr
3300-6600 // 5600-11225
Filter Area ft² / m²
825 // 77
Other Info
Large baghouse filter
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
1200
External Dimensions (WxDxH mm)
2450 x 1250 x 3350

Description

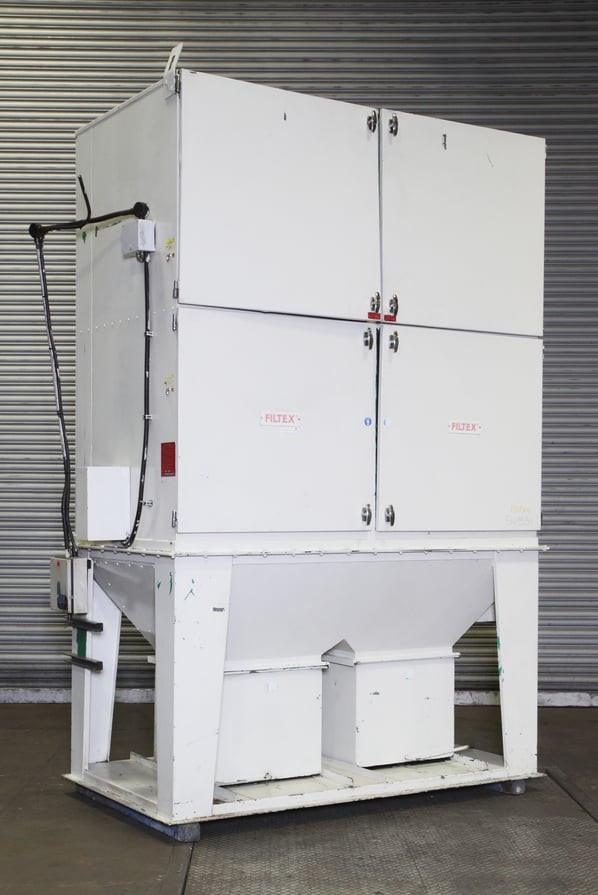

Filtex FX 825 Type H Dust Extractor

The Filtex FX 825 H is a self contained, high efficiency, envelope type unit of compact design.

The FX 825 H is a fully self contained free standing, high efficiency, dust reduction and elimination extractor complete with fully automatic electrical shaking mechanism.

This Dust abatement machine features 2 separate dust collection hoppers and four individual full access doors with quick release fasteners for ease of inspection of the bags and fan.

Suitable for dry dust environments such as carpentry shops, general engineering, cement works, paper mills and gypsum works but to name a few.

The unit incorporates fan, motor and dual filter assemblies with mechanically operated shaking mechanism, designed to accept combinations of fan volume/cloth area to meet the varying applications in industry.

Features Include:-

  • Full width hinged access doors, with quick release fasteners, provide easy inspection or removal of fan, motor or either filters.
  • 11kW high performance fan set.
  • Automatic electrical shaking mechanism control unit consists of contactors and time delay relays, so that when the stop button is operated, the fan motor is allowed to run down before the shaker motor is automatically energised. This then runs for a pre-determined period, after which the whole system is shut down and resets.

Technical specifications:

  • Approx max Duty CFM / M³/Hr : 6600 / 11225
  • Dual Inlet dimensions 615 x 305 mm
  • Filter Area ft² / m²: 785 / 76.60
  • Fan set 15Hp - 11KW
  • Bin capacity 396 litres
  • Approx dry weight - 900Kg

FX825 11kW fan curves

  • Course dusts 11225m³/h (6600cfm) @ 2190pa
  • Medium dusts 8420m³/h (4950cfm) @ 2190pa
  • Fine dusts 5615m³/h (3300cfm) @ 2190pa

pdf icon Print / Download Filtex FX 825 Dust Extractor Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
