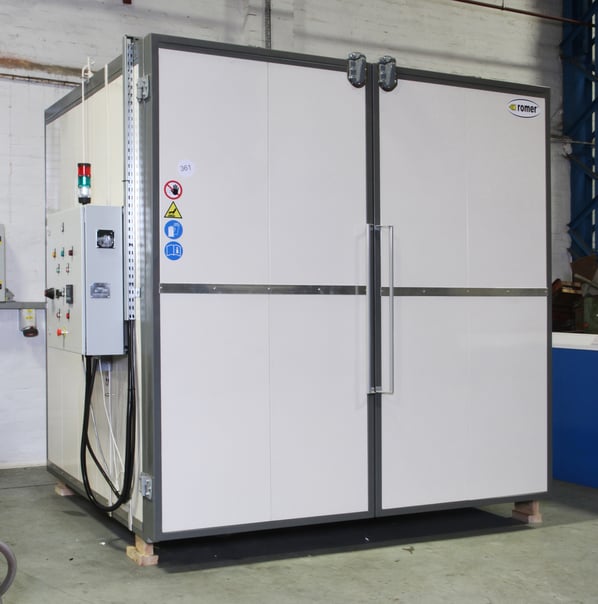

Romer 2 m Curing Oven With MTS + ThPID iCure Controller

New

Price [?]
£ Login or Register for price
Guarantee
1 year manufacturer guarantee
Availability
Available for immediate collection
Stock No
OW1657
Manufacturer
Romer
Model
SLS-300
Year of Manufacture
2017
New or Used
New
Internal Size (WxDxH mm)
2000 x 2000 x 2000
Max Temp
225°C
Other Info
NEW PLC HMI Controller
Location
Our central warehouse, Aldridge, West Midlands
Weight (kgs)
1566
External Dimensions (WxDxH mm)
2520 x 2300 x 2710

Description

The Romer 2 m³ Curing Oven electric oven has been specially built and specified by ourselves for the UK market with upgraded controls and build features, Improved uniformity and functionality.

Constructed from a heavy duty steel box sectioned frame with infilled 160 and 300 mm thick insulated galvanized panels and externally clad in a hard wearing powder coated finish.

The NEW MTS + ThPID iCure Controller installed on this model, improves the functionality of the oven by offering user control of all of the processing parameters and well as offering full tractability not only of the process, but also power consumption.

The MTS + ThPID iCure Controller comes complete with additional PC software, so any data stored in the controller can be recorded and transferred to your own PC for review and archiving.

Typical applications may include;

  • Powder Coating Curing Processes
  • Water based paint stoving
  • Curing resins, rubbers and composites materials
  • Pre heating and low temperature heat treatments
  • Processing plastics,
  • Thermal bonding
  • Drying applications
  • Thermal testing etc

Our latest design of ovens include the following  features;

  •  Double loading doors with adjustable explosion proof slam shut positive door locks
  •  Roof mounted air circulation fan with multi positional hot air return vents for uniform heat distribution, tested to within ± 5°C over a 9 point survey.
  • Controlled exhaust damper for programmed fume extraction
  • Insulated floor with trolley entry channels
  • Galvanised coated internal work chamber sheets
  • PLC controlled with iCure 7" Touch screen HMI panel with programmable functionality:
    Large colour touch panel, providing full control of all operational parameters. You can save up to 5 programs and activate up to 50 consecutive events governing ramps, dwells, time and temperatures for each programme. Auto timer start process facility, on-board energy consumption monitoring and recording, process memory review and a USB port for data capture.
  • Modular electric heating system - Swiss made finned elements, easy access panel, and an innovative design offering instant heat generation.
  • 2 zone heating control with full thyristor firing for close control and minimum energy consumption.
  • Side mounted control panel with HMI display, over temperature protection and an easy view status sounder and light bar.

Typical applications may include;

  • Powder Coating Curing Processes
  • Water based paint stoving
  • Curing resins, rubbers and composites materials
  • Pre heating and low temperature heat treatments
  • Processing plastics,
  • Thermal bonding
  • Drying applications
  • Thermal testing etc



General Specifications 8m³:

  •  Internal Dimensions: 2000 x 2000 x 2000 mm high
  •  External Dimensions: 2520 x 2300 x 2710 mm high
  •  Maximum continual process temperature: 225°C
  •  Access doors – 2
  •  Product Trolley Supplied
  •  Power rating:  45 kW
  •  Heat up Time: 15 – 40 mins to 180°C
  •  Tolerance: <+/- 5°C @ 180°C

pdf icon Print / Download Romer 2 m Curing Oven With MTS + ThPID iCure Controller Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
