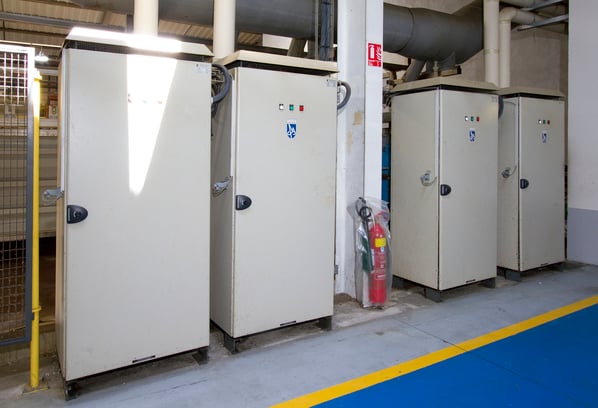

1000 amp - 0-75 volt Rectifiers - Part of SMJ014

Stock No
SMJ011
Model
MIS 338
Year of Manufacture
10/2003
Serial
4 x Rectifiers available. S/N 4187,4188,4189,4190
New or Used
Used (Second Hand)
Voltage
0 - 75 Volts DC
Amps
0 - 1000 Amps DC
Other Info
Thyristor controlled, Bridge six phase
Location
Bordeaux, France
External Dimensions (WxDxH mm)
800 x 600 x 2020mm high

Description

1000 amp - 0-75 volt Rectifiers

CONTINO CURRENT RECTIFIER

IGENERAL CHARACTERISTICS:

TYPE OF APPLIANCE: MIS 338 No.: 4187,4188,4189,4190

CONSTRUCTION: 10/2003

TECHNOLOGY: HEXAPHASE THYRISTORS MIXED DECK.

ADJUSTMENT TYPE: 0 to 100% continuously by thyristors at phase angle.

TYPE OF CONTROL: INTENSITY or VOLTAGE.

COOLING: Air force controlled by thermostat.

AIR SPEED (m / s): 2 X (4m / s)

DIMENSIONS:

- WIDTH = 800 mm

- DEPTH = 600 mm

- HEIGHT = 2020 mm (Base + Ventilation)

- VOLTAGE = 400 V -5 / + 10% TRI. Without neutral

- FREQUENCY = 50/60 Hz

- INTENSITY = 134 A

- ABSORBED POWER = 93 KVA

* CABLE SECTION: 3 x 70mm2

- NOMINAL VOLTAGE = 75 V DC

- NOMINAL INTENSITY = 1000 A DC

* SECTION OF BARS: 500mm2 copper.



pdf icon Print / Download 1000 amp - 0-75 volt Rectifiers - Part of SMJ014 Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
