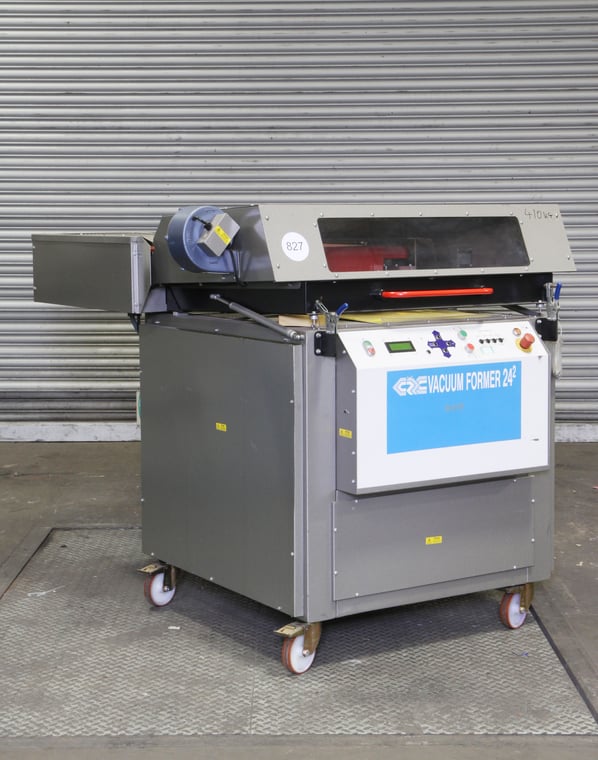

C R Clark 24 Vacuum Forming Machine

Stock No
NAB827
Model
242
New or Used
Used (Second Hand)
Process Application
Vacuum forming
Other Info
As NEW condition
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
410kg

Description

The C R Clark 24² 242 is fitted with a sealed lubrication rotary vane vacuum system offering a minimum vacuum level of -083 Bar.  The ceramic heater system provides fast and even heating and slides on high quality linear slides.

The platen has a generous 305 mm travel, allowing taller moulds to be formed with ease.

The machine is fitted with sheet leveling as standard, and has a range of controls to ensure accurate heating of even the most demanding materials.

The machine has a high-temperature silicone upper seal, and a lift-out platen seal for ease of service.  Reducing plates are available, allowing the machine to be adapted for material size.

The 242 has an LED screen control and pneumatic actuation of the platen, hood and clamp frame.

Details

Voltage 400V 3 Phase

Max Current 15 Amps per Phase

Sheet Size 686x 660mm

Maximum Material Thickness 6mm

Maximum Mould Height 305mm

Dimensions 1250x 1800 x 1780mm

Weight 320kg














pdf icon Print / Download C R Clark 24 Vacuum Forming Machine Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
