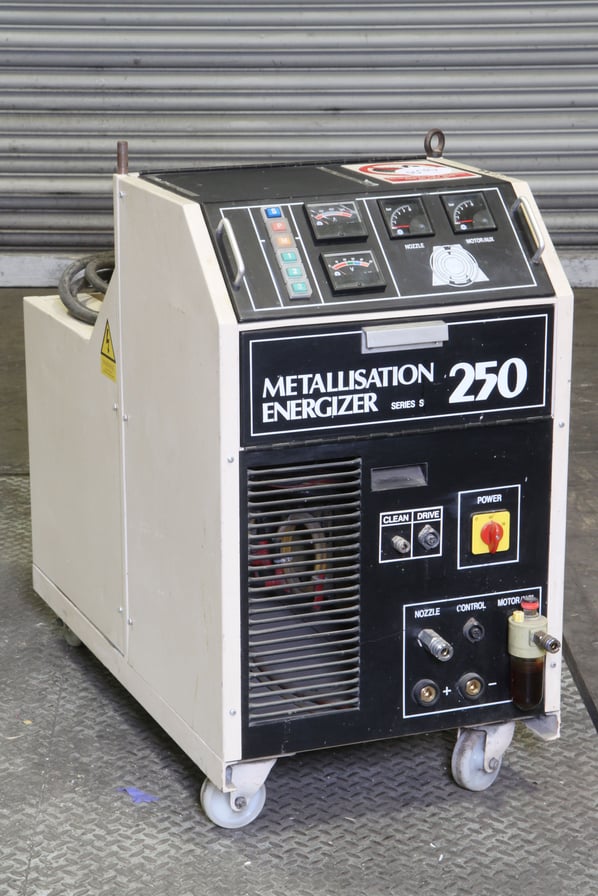

Metalisation Arcspray S250/140 Unit

Direct From Site Clearance

Direct Site Clearance Price [?]
£ 3,500 (+ VAT)
Clearance ends
23 August 2017 14:00 GMT while stocks last
Buyer's Premium [?]
10% BP will be added to your invoice
Part of a Direct Site Clearance
Excess Stock from retained plastic manufacturing supplier
Stock No
NAB816
Model
S250/140
New or Used
Used (Second Hand)
Capacity
Twin wire unit
Process Application
Thermal Arc Metal Spray Unit
Other Info
As NEW condition
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
226kg

Description

The Metallisation ARC S250/140  twin wire arc spray system with a 5m pull only setup is ideally suited to small engineering job shops where a combination of manual or tool post mounted spraying is performed.

Alternatively, the S250 energiser, setup with a push/pull drive system and 5m, 10m or 20m supplies is ideally suited to small anti-corrosion applications where higher material throughput is not necessary (spraying small brackets for example).

The Metallisation ARC S250/140  (Closed Loop) is a unique blend of ability and innovation. The proven performer, the ARC pistol and drive system plus the sealed, switched voltage S250 Energiser and added Closed Loop current control. This enables the operator to set the spray current independent of wire type before starting the job, enabling easier setup and protection of the system from over-current.

The control function is fully sequenced by a simple PLC which ensures improved reliability as less component parts are required. It also makes fault finding simple using a standard multimeter with the I/O for the PLC. The S250 energiser features sealed electronics for excellent reliability in the harshest of spray environments.

The design also allows for multiple customer-specific packaging options for the wire drive and dispense. t. There is no motor in the pistol. Instead, the ArcS250 uses the patented ‘Synchrodrive’ system, where a single, sealed motor and flexible drive arrangement, powers a reliable, positive drive push/pull up to a length of 20m. This results in a long reach and lightweight flexibility of the pistol and supplies – and more comfortable and productive working conditions for the operator.

Key applications

  • Reclaiming parts
  • Engineering bond coats
  • Bearing and seal surfaces
  • Small anti-corrosion
  • Vessels and enclosures
  • Fences/ gates
  • Anti-spark coatings

Key Features

  • S250 sealed energiser = reliability
  • Displays = clear, robust with wide viewing angle
  • Closed-loop current = simplicity / reliability
  • Uses wires from 1.6mm to 2.5mm
  • Air cooled cables = lightweight
  • Excellent pistol manoeuvrability 5,10 and 20m supplies packages
  • Anti-corrosion and engineering coatings
  • Easy to maintain = lower downtime
  • 5m pull option available for small workshops
  • MIG, coil and drum dispense
  • Soft start for smooth start ups = reliability
  • PTFE lined conduits = reliable long wire feed



pdf icon Print / Download Metalisation Arcspray S250/140 Unit Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
