Guyson International Euro 6 SF Blast Cabinet

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability:
In stock now
Stock No
SW765
Manufacturer
Guyson International
Model
Euro 6 SF SYSTEMS
Year of Manufacture
1996
Serial
501077
New or Used
Used (Second Hand)
Work Envelope (WxDxH mm)
1050 x 740 x 800
Work Handling Method
Manual
Other Info
Popular universal machine
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
220
External Dimensions (WxDxH mm)
1240 x 830 x 1850

Description

A Second hand popular Guyson Model Euro 6 suction venturi feed blast cabinet which has a universal appeal for all those medium sized engineering blast and cleaning jobs

This shot blasting equipment offers a faster alternative to labour intensive operations such as hand deburring, scraping and wire brushing, chemical cleaning, acid etching or dipping, liquid honing, knife trimming, sanding, grinding and many others.

Typical uses of the suction feed system include:

- Cleaning without dimensional change
- Using dryblast techniques pioneered by Guyson, even complicated shapes and sensitive materials can be efficiently cleaned without substrate erosion or dimensional change. Ideal for the precision cleaning of moulds, dies and tools without damage to delicate surfaces.

Cosmetic finishing

Increasingly, cosmetic finishes can be the competitive edge that makes your product more attractive to the consumer. Whether you are addressing minor surface imperfections,

Deburring

Blast finishing can speedily remove lightly attached burrs from complex machined components and can be more effective than hand or machine deburring in areas with poor accessibility. Non-abrasive deburring media leave even fragile materials untouched.

Deflashing

Beadblasting can be used to rapidly and thoroughly deflash resin-moulded or die-cast components. Brittle flash can be cleanly removed from intricate components without altering adjacent surfaces by precise selective impact treatment.

Descaling

Use bead or grit blasting to quickly remove heat scale, surface discoloration, oxides, rust, weld scale or corrosion. Restore a component's looks and remove surface problems that interfere with painting, plating, coating, drawing and other processes.

Maintenance clean, re-manufacture, refurbish

Guyson blast cabinets are successfully used in maintenance workshops, repair shops, service centres, garages and military depots on a varied component mix. They can eliminate laborious hand work, chemical cleaning and environmental issues from the workshop, and they are ideal for automotive core re-manufacture operations and refurbishing cutting tools, TCT and diamond tipped routers, saw blades, drills etc.

Surface etching

Improved surface preparation or 'keying' of component surfaces can be achieved using Guyson blast equipment. Fine media blasting in one of our blast systems delivers very real improvements in adhesion for performance critical components such as medical implants when they are etched prior to ceramic or PVD/CVD coating.

Features include:

- Internal dimensions of 1050 x 740 x 800 mm
- Powered cyclonic media separation for efficient media grading
- 600mm Rotary table
- Front access doors 980 x 870mm
- R/H side access door 545 x 530mm
- Twin gauntlets
- Air pressure regulator
- Fixed gun holster
- Front viewing window.
- Internal lighting

Includes separate E41 DC dust filter unit:
sn-502742
YoM-2000 // 3ph/400v
Ext dims - 570 x 600 x 1050 mm // 52kgs

External dimensions (wxdxh) 1240 x 830 x 1850 mm
Max load ( kg) 150

pdf icon Print / Download Guyson International Euro 6 SF Blast Cabinet Datasheet

Additional files

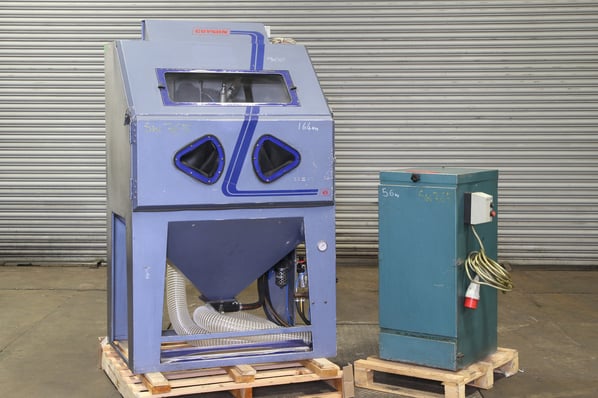

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
