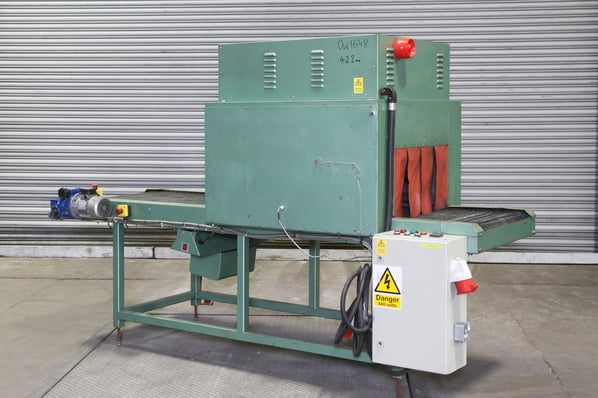

Westfield 3T24/12 Drying Shrink Wrap Tunnel

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability:
In stock now
Stock No
OW1648
Model
ST 24/12
Serial
21203
New or Used
Used (Second Hand)
Internal Size (WxDxH mm)
600 x 1050 x 350
Other Info
Heavy duty drive
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
422
External Dimensions (WxDxH mm)
1130 x 2780 x 1850

Description

Westfield Shrink Heat Tunnel

Westfield tunnels can be used for both drying and shrink wrapping of components. As a dryer the parts can be placed directly onto the steel belt and passed under the warm air within the chamber to force dry by convection.

It uses a steel mesh belt with side chains as this is better on heavy loads compared to the cheaper method of using just a friction drive at the end of the tunnel. This is because whilst a friction drive is acceptable for a lot of loads, the belt over time will stretch and with heavier loads in particular this can lead to the need to change the belt.

Side chains prevent the belt ever stretching and provide a much more positive method of driving the belt.

The under belt blower simply blows cool air onto the belt whilst it completes its full cycle. This prevents a critical temperature being reached on the belt, so that there is no possibility of polythene sticking to the belt if it gets too hot.

The variable speed control provides complete control of production speeds and achieves the best possible presentation. The insulated curtains improving consistency and reducing running costs.

Key Features

  • Accurate temperature control ensuring absolutely consistent end pack presentation.
  • Variable speed control providing complete control of production speeds.
  • Active rotation conveyor ensuring perfect under pack shrinking.
  • Insulated curtains improving consistency and reducing running costs.

Electrical supply 32 Amp 50 Hz 3~

pdf icon Print / Download Westfield 3T24/12 Drying Shrink Wrap Tunnel Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
