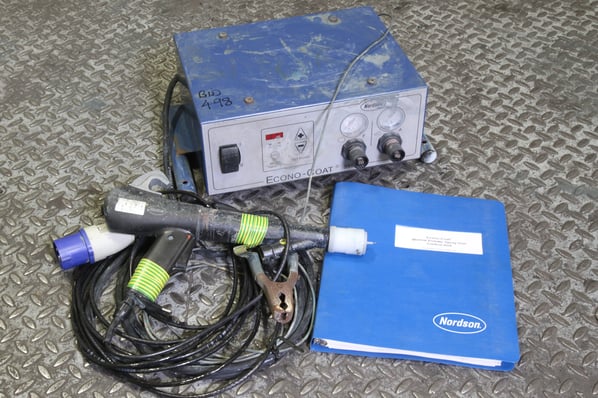

Nordson Econo-coat Powder Gun and Generator

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
2 In stock now
Stock No
GW075S
Manufacturer
Nordson
Model
ECONOCOAT
Year of Manufacture
2004
Serial
NC 06L 00391
New or Used
Used (Second Hand)
Other Info
Ideal for touch-up manual spray station
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
10
External Dimensions (WxDxH mm)
350 X 300 X 200

Description

The Econo-Coat manual powder spray gun control unit provides pneumatic and electrostatic controls for the Econo-Coat manual powder spray gun. The control unit provides the voltage output to the powder spray gun and monitors the feedback current to control the electrostatic charging of the powder.

Features and Benefits

  • Automatic Feedback Current control ensures consistent, optimum transfer efficiency.
  • Superior Faraday-cage penetration accommodates wide range of coating requirements.
  • Maximum electrostatic performance delivers highest transfer efficiency.
  • Specially engineered materials used in powder-contact parts minimize wear and impact fusion.
  • Meets all applicable approvals to assure maximum operating safety.
  • Easy-access, friction-fit powder pathway design makes routine cleaning and maintenance fast and uncomplicated.
  • Largest selection of nozzle choices available in the industry.
  • Optional nozzle extension with electrode cleaning air keeps charging electrode clean for consistent
  • charging efficiency.
  • Optional ion collector device draws excess ions from spraying zone for enhanced coverage and
  • finish appearance.

Air Pressures

  • Input 5−7 bar (80−100 psi)
  • Flow Rate 2 bar (30 psi)
  • Atomizing 0.7 bar (10 psi)
  • Fluidizing 0.1−0.3 bar (2−5 psi)

Electrical Requirements

  • Input Requirements 85−250 Vac, 1 phase, 50−60 Hz, 40 VA
  • Voltage Output (To Spray Gun) 0−21 Vdc, 0.60 A







pdf icon Print / Download Nordson Econo-coat Powder Gun and Generator Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
