Machines & equipment for sale

CM Modena T5 Minimignon Table Blast Machine.

Stock No
CM Modena
Year of Manufacture
Work Envelope (WxDxH mm)
500 X 335
Work Handling Method
Manual Load Auto Blasting
Other Info
Only 7218 run hours
Our Central Warehouse, Aldridge, UK
Weight (kgs)
External Dimensions (WxDxH mm)
1550 X 1410 X 2750



CM Modena Euroblast CMT5 (CM500)

The Modena Euroblast CM T5 is an automated 500 mm diameter rotary table airless blast machine that was formally sold by the Guyson group within the UK. These machines have a very small footprint compared to the capacity of the work chamber and is fully self contained with inbuilt dust control and waste separation system meaning it is very easy to install and maintain.

Mode of operation

The parts are loaded to the rotary table and the abrasive media is gravity fed to the centre of a single turbine blast wheel where it is accelerated onto the components sitting on the rotary table. Consequently every facet of the component exposed to the blast stream is thoroughly blasted as the table revolves through 360°.

Because of their characteristics the rotary-table shot blasting machines can easily be incorporated in diversified machining, adapting to the treatment of various parts with differing shapes and base materials. They can be equipped with fixtures and accessories placed directly on the table and designed to present the work to be treated in the best orientation.

The Modena CM T5 (rotary table) Shot blasting machine can easily satisfy a variety of blasting  needs, providing excellent results in terms of productivity, safety and energy savings, thanks to the quality of materials used, the safety standards applied.

This used CM T5 automatic, centrifugal wheel type tableblast cleaning machine is used for an extensive variety of surface treatments and preparatory operations.

Typical uses for the Tableblast (rotary table) Shot blasting machines include.

  • Cleaning
  • Finishing
  • Descaling
  • Deburring
  • Deflashing
  • Core Knockout
  • Corrosion Removal
  • Shot-Peening
  • Surface Preparation for post operations


Cleaning of dies for the aluminium extrusion industry.

The shotblasting process allows the removal from aluminium extrusion matrix's of the impurities that remain following cleaning with caustic soda.

Cleaning of moulds for fabrication of glass containers.

The shotblasting process carried out by the shotblasting machine allows for the removal from hollow-glass dies, the residues of graphite or other release agents sprayed on the dies during the production process.


Finishing of high pressure die castings (engine components, ornamental hardware, aircraft and aerospace components, etc.). The shotblasting process carried out by the shotblasting machine allows for the removal of residual burrs and making the surface homogeneous both for aesthetic purposes and as preparation for subsequent surface treatments.

Core knockout,

Cleaning (fettling) of ferrous and non-ferrous sand castings. The shotblasting process carried out by the shotblasting machine allows for the removal of the casting sand following the casting process. The mass of sand that contains the castings is crushed and separated from the pieces by the impact of the shot and even the slightest flash on the work is removed.


Features include;


3kW blast motor,

1.5Kw 6.2 rpm driven table

500mm rotary table with a 250kg load capacity

Maximum single component size 920 x 475 mm High.

Comprehensive control panel including Ammeter, timer and safety interlocks.

Integral bag dust collector.

Cyclonic media separation and grading facility.


Overall dimensions 1550 X 1410 X 2750 mm
Total weight 938kg
Installed power 5.3kw 12.5 Amps

pdf icon Print / Download CM Modena T5 Minimignon Table Blast Machine. Datasheet

Additional files

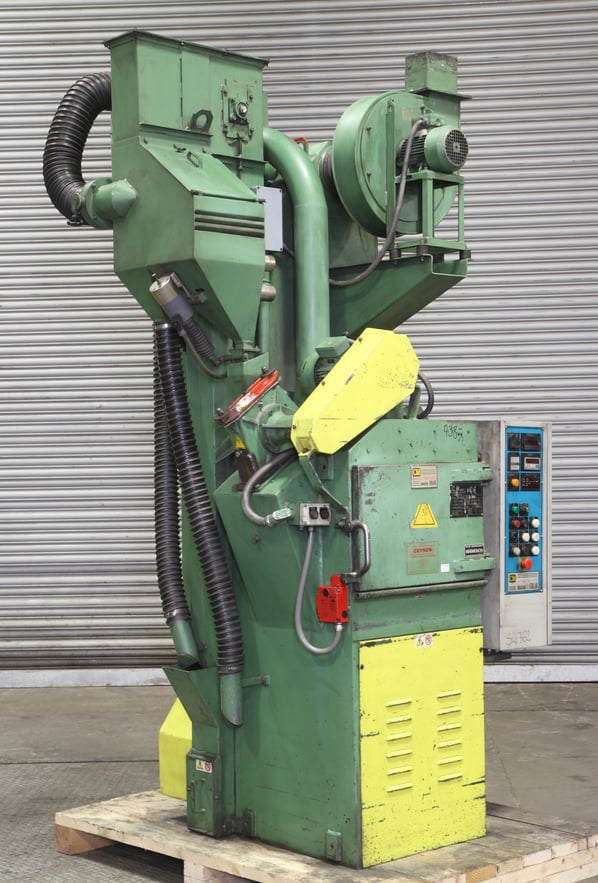

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
