Mattis Dust Extractor

Stock No
DC 09
Year of Manufacture
New or Used
Used (Second Hand)
Approx Duty CFM / M³/Hr
400 // 680
Filter Area ft² / m²
35 / 3.5
Other Info
Unused stock item
Our Central Warehouse, Aldridge, UK
Weight (kgs)
External Dimensions (WxDxH mm)
480 x 330 x 1040


Mattis DC 09 Man Shaker unit provides dust and fume extraction for a range of industrial applications. The Man Shaker Units are commonly used in conjunction with small machine tools, Shot blast cabinets, dust hoods, extraction arms and general dust and fumes generated around the workshop.

They consist of a centrifugal fan, twin filter section with manual clean shaker, hopper section and dust collection bin.

The Man Shaker units are fitted with a manual cleaning shaker mechanism. This mechanism is simply activated by hand to shake any unwanted contaminants from the surface of the filter bags. The particles then fall into the collection bin at the base for easy disposal.

Electrical requirements

1ph 240 Volt 0.41kw 2.73Amps 50Hz

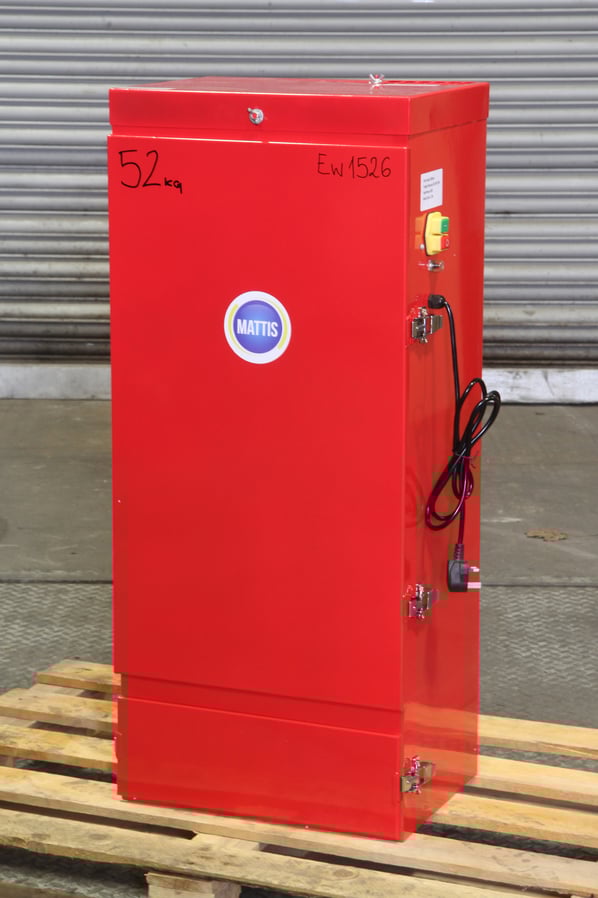

Model shown ex showroom display.

pdf icon Print / Download Mattis Dust Extractor Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
