IST Sales and Hire ABP2000 Pressure Blast Cabinet

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability:
In stock now
Stock No
SW761
Manufacturer
IST Sales and Hire
Model
ABP 2000
Serial
20264
New or Used
Used (Second Hand)
Work Envelope (WxDxH mm)
2000 x 1100 x 1400
Work Handling Method
Manual
Other Info
Large capacity machine
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm)
2500 x 1260 x 2700

Description

The ISTblast is one of the largest industrial blast cabinet on the market today.

The ISTblast is equipped with a cavernous blast chamber with internal dimensions of: width 2000 x depth 1100 x height 1400mm, so it can accommodate the largest of industrial parts such as pump bodies, filters and commercial engine parts.

Usually this size and type of cabinet is sold for heavy duty industrial applications, so is equipped with a full pressure fed system incorporating a Guyson model CY600/12 Cyclone Reclamator and G55 Pressure Pot with a matching Filtex dust collector.

Specially designed to increase productivity, the pressure type cabinet will be the answer to all your needs. It will give you fast results with tough jobs and hard-to-reach areas.

Area's of application

  • Automotive
  • Petroleum
  • General manufacturing
  • Aerospace and aviation
  • Marine
  • Power & energy
  • Pharmaceutical

Features

  • The ISTblast pressure type cabinet has been fitted with a Guyson G55 55ltr pressure vessel that forces the media through the blasting hose and the tungsten carbide nozzle.
  • CY600/12 Cyclone Reclamator after impact on the work piece, the abrasive (glass beads, aluminum oxide or other reclaimable media) is transferred to the reclamator, which separates reusable media while dust is exhausted into the collector. The tunable reclamator can be adjusted to control media size. Externally adjustable tuning band requires no tools and controls the size of fine particles extracted from the blast media.
  • The 55ltr pressure vessel minimises refilling time and seals automatically for fast, easy startup.
  • Rigid, dual-panel doors to the front and single door to the left
  • Entry exit vestibules on the sides allowing pipes, tubes and bars to be processed
  • Safety-door switches prevents accidental blasting when doors are open.
  • Self-adjusting door latches assures continued tight sealing of door gaskets.
  • Simple, pneumatic controls deliver greater reliability than electric controls employing limit switches and solenoids that often stick and burn.
  • Wide foot pedal enables operation with either foot.
  • Rubber lining to protect your investment from aggressive abrasives with rubber lining for the cabinet interior walls and doors, and a longer-wearing tungsten  carbide nozzle.
  • 8 x operator glove positions means ease of moving the nozzle and less stress on the arms, it will also be easier to reach the part from various angles and heights.

External dimensions ( w x d x h ) mm

  • Cabinet 2500 x 1260 x 2700
  • Cyclone and pressure pot Ø800 x 2500
  • Dust ext 1300 x 1300 x 2620





pdf icon Print / Download IST Sales and Hire ABP2000 Pressure Blast Cabinet Datasheet

Additional files

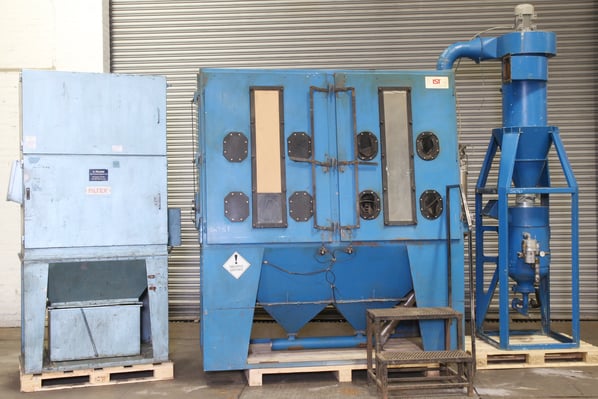

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
