CM Surface Treatment L50 Tumblast Shot Blaster

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Run & Checked Price [?]
£ Login or Register for price
Availability:
In stock now
Stock No
SW760
Manufacturer
CM
Model
CM L -50
New or Used
Used (Second Hand)
Work Envelope (WxDxH mm)
520 x 500 x 410
Work Handling Method
Manual Load Auto Blasting
Other Info
Only 7037 run hours
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
970
External Dimensions (WxDxH mm)
1320 x 1250 x 2700

Description

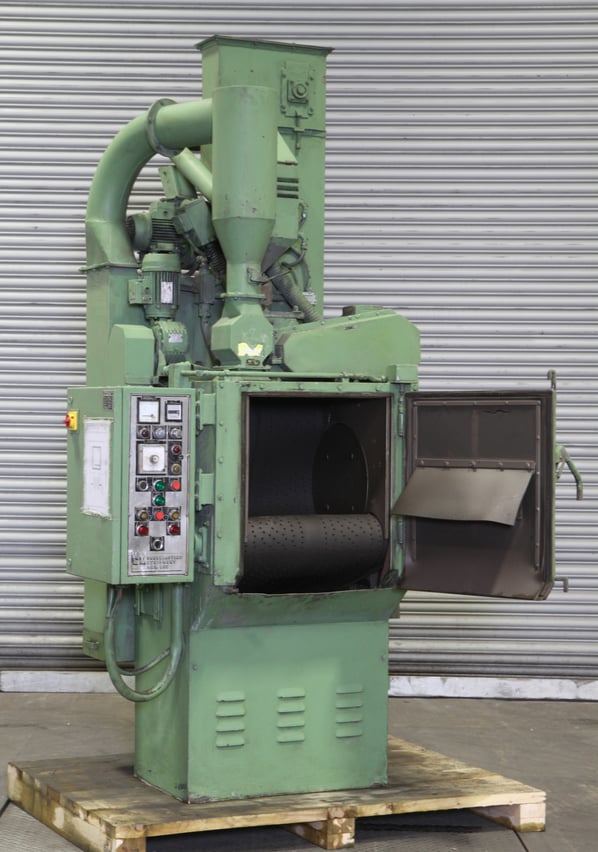

This second hand CM /  L 50 Tumble blast type machine is particularly suitable for shot blasting of small parts loaded in bulk.

A special anti-abrasive rubber belt arranged as a cradle receives the pieces to be treated and with its rotating movement maintains them in a constant tumble exposing all facets to the blast media stream.

The pieces are hit by the jet of abrasive generated by the turbine, and by continuously changing position, they receive the shotblasting treatment uniformly on all the surfaces.

The Tumble blast model Shot blasting machine can satisfy a range of different needs in blasting, providing excellent results in terms of productivity, safety and energy savings.

Some examples of use for the L 50 Tumble blast (batch processing) model Shot blasting machine are:


  • Descaling of hot forgings, hot stampings workpieces manufactured in steel or non-ferrous alloy.
  • Descaling of hot-rolled profiles, tubes, plates before painting.
  • Finishing of cast light alloy for automotive components
  • Shot-Peening of springs and mechanical elements for fatique life improvement.
  • Removal of refractory (ceramic) material from precision castings, and their deburring after cutting.
  • Cleaning of tools: - after brazing of hard metals or cemented carbide inserts or tips - after heat treatment - before coating.
  • Cleaning of dies for aluminum extrusion industry.
  • Cleaning of moulds for fabrication of glass containers.
  • Cleaning of dies used for permanent low pressure and gravity die casting of light alloy components (automotive, furniture parts, etc.).
  • Cleaning, reconditioning of parts of automotive such as: brakes, clutches, shock absorbers, steering knuckles, ball joints, etc.
  • Mechanical artificial ageing for aesthetic purposes natural stone and resin or cement bond agglomerates.
  • Deflashing of thermoset (sintered, and injection molded) plastics and fiberglass parts.
  • Deburring, finishing of sintered metal (powder metallurgy) components.
  • Deflashing, finishing of high pressure die castings (engine components, ornamental hardware, aircraft and missile components, etc.).
  • Core knockout, cleaning (fettling) of ferrous and non-ferrous sand castings.

Machine Specifications:

  • Model L50
  • Load capacity (kg) 70
  • Working Volume (dm3) 28
  • Blast mill dimensions Ø 422 (mm) x 520 L (mm)
  • STAStandard belt hole size 7mm
  • 4.73 KW full load
  • Full load in amps 7.95
  • Voltage 3~ 415 50hz

pdf icon Print / Download CM Surface Treatment L50 Tumblast Shot Blaster Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
