Machines & equipment for sale

Carbolite GPC12/200 Furnace

Special Offer

Refurbished Price [?]
£ 7,500 (+ VAT)
Special Price
£ 6,000 (+ VAT)
Special offer ends
06 September 2018 15:00 GMT while stocks last
Condition
Excellent Condition
Stock No
OW1638
Manufacturer
Carbolite
Model
GPC12/200
Serial
20-501726
Internal Size (WxDxH mm)
600 x 900 x 400
Max Temp
1200 °C
Other Info
24 kW Power Rating
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
518 kg
External Dimensions (WxDxH mm)
1360 x 1500 x 1900

Description

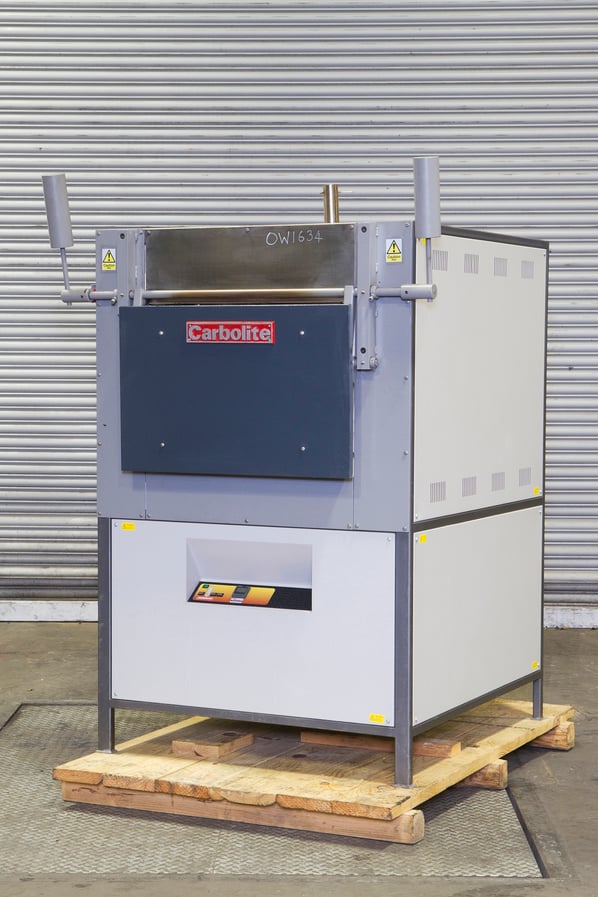

Carbolite GPC 12/200

The Carbolite GPC 12/200 general purpose chamber furnace is a free standing furnace with a 1200°C, temperature range and an internal 200 litre capacity.

Applications in general industry include:

* ferrous metal heat treatments; annealing, hardening, tempering, stress relieving, and simulation of a larger industrial process, on a laboratory scale

Applications in quality control include:

* testing of component materials or finished products

Applications in tool making and maintenance include:

* heat treatment of metal tools and tool steels

Applications in coatings manufacturing include:

* testing coatings for resistance to fire and longevity testing of finished coatings.

Standard Features

  • 1100°C maximum operating temperature
  • 200, litre chamber volume
  • Free radiating coiled wire elements
  • low thermal mass insulation for high energy efficiency
  • Up & away door keeps heated surface away from the user
  • Eurotherm 2216e temperature controller
  • Thermocouple type R
  • Heating elements are easily serviced
  • Max power (W) 24000
  • Weight (kg) 518
  • Dimensions: Internal 600 x 900 x 400 (mm)
  • Dimensions: External H x W x D (mm)  1360 x 1500 x 1900



pdf icon Print / Download Carbolite GPC12/200 Furnace Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
