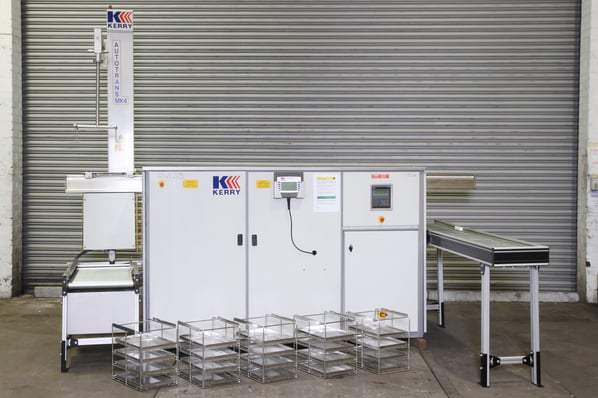

Guyson International Kerry 450M With Auto Trans MK4 Robotic Handler

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability:
In stock now
Stock No
DW1213
Manufacturer
Guyson International
Model
Microsolve Monosolvent 450M
Year of Manufacture
2000
Serial
60296-1-8-00
New or Used
Used (Second Hand)
Work Envelope (WxDxH mm)
450 x 325 x 300
Process Stages
3
Other Info
Ex clean room machine. Low usage
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
770 kg
External Dimensions (WxDxH mm)
3600 x 1200 x 2800

Description

This pre owned  Microsolve 450M Mono Solvent system offers high precision cleaning with the ability to deal with heavy levels of contamination.

Microsolve MONO-SOLVENT three-stage systems provide ultrasonic immersed cleaning using HFE (hydrofluoroether) or HFC (hydrofluoro-carbon) solvents, followed by vapour rinsing and freeboard dry.

Typical applications include bearings, gyro components and precision medical components; maintenance cleaning of pneumatic and hydraulic components; and, in electronics, flux removal from PCBs or from soldering jigs and fixtures.

Machines general layout:

Stage 1:

Ultrasonic non boiling immersion cleaning tank for the removal of gross contamination and dirt. This tank is constantly replenished from the condense return system to maintain the solvent at a low level of contamination by overflowing to the second stage for a closed loop system.

Stage 2:

The vapour tank by boiling the solvent generates a vapour blanket which sits above and across both tanks of the machine offering a vapour phase rinse as the parts pass through it.

Stage3

After the vapour phase rinsing the basket is raised into the void above the tanks and sited adjacent to the cooling coils to allow a final drain and the parts being allowed to cool, before exiting through the freeboard zone for unloading.

This system is further equipped with a twin axis robotic handler (Autotrans MK4)which controls the vertical and horizontal placement of the basket within + or - 1mm at a controlled exit speed..

Automation of the ultrasonic cleaning process reduces running costs with both solvent and aqueous systems by assuring consistent, repeatable quality, reducing reject rates, and increasing throughput.

With Microsolve automated systems further cost reductions result from controlling the speed of basket entry and withdrawal from the vapour zone, thus reducing solvent drag-out and losses to atmosphere caused by disturbance of the vapour blanket.

Features unique to Microsolve systems include:

  • Triple coil reflux cooling,
  • Automatic twin sliding seal lids,
  • Vapour break, 150% freeboard,
  • Solvent level monitoring
  • P500/2 1000 watt USC generator

These enhanced feature ensure that the system is safe to use and fully compliant with environmental and safety legislation including the Solvent Emissions Directive (SED).

These design features also mean that the Microsolve system operate with low, predictable solvent usage and customers enjoy low, predictable running costs.
