Hedin Curing Oven

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability:
In stock now
Stock No
OV1622
Manufacturer
Hedin
Model
Curing oven
Serial
5125
New or Used
Used (Second Hand)
Internal Size (WxDxH mm)
1100 x 900 x 1500
Max Temp
240
Other Info
Close tolerance oven
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
908
External Dimensions (WxDxH mm)
1920 x 1180 x 2100

Description

Hedin - Electric Batch Ovens are suitable for almost any application from simple drying processes to exacting metal treatments and all types of production work including heavy work loads.

This typical example of a Hedin heavy duty industrial box oven has the following features:-

  • Maximum Temp - 240 degree Celsius -
  • 15KW (Kilowatts)  heater power with thyristor control for close control
  • Roof mounted air circulation fan for even heat distribution within the process chamber
  • Vertical airflow pattern
  • Robustly constructed twin locking easy access doors
  • Exhaust damper ventilation, ideal for drying applications
  • Insulated steel floor
  • Side runners for product hanging
  • Process timer
  • Vacuum line for composite curing

The Hedin Box Oven is Ideally suited to low temperature thermal treatments such as curing of applied coatings and composites, forced drying, thermal testing, stress relieving, de-embrittling and tempering.

The curing of composites is also catered for with the addition of an internal vacuum connection point and  thermocouple socket for on job temperature recording.

Alternative applications

Pre-heating of ferrous and non ferrous metals / plastic / wood / glass substrates or curing / stoving suitable coatings

This would make an excellent addition for those processing larger batches of small components or singular large items in an industrial or commercial environment.

Electrical details 400 // 440v 3ph 50Hz, 25 amps per phase. Heater load 15kw



pdf icon Print / Download Hedin Curing Oven Datasheet

Additional files

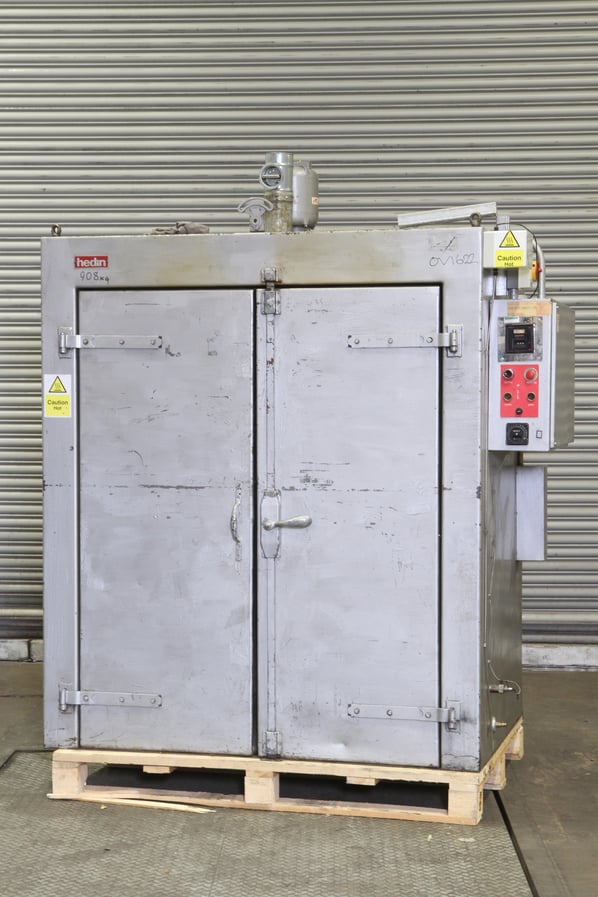

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
