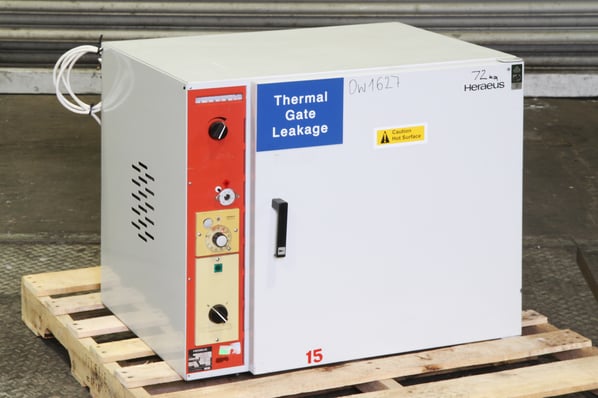

Heraeus UT5050 Bench Top Oven

Stock No
OW1627
Manufacturer
Heraeus
Model
UT 5050 E
Year of Manufacture
1998
Serial
8403472
Internal Size (WxDxH mm)
415 x 455 x 505
Max Temp
250 ° C
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
60
External Dimensions (WxDxH mm)
790 x 640 x 685

Description

Heraeus UT5050 Function Line Laboritory Oven

The Heraeus UT5050 heating and drying ovens where safety is guaranteed with features such as tilt-proof shelves and efficient insulation ensuring low surface temperatures and economical operation.

Virtually every heating and drying requirement in the laboratory can benefit from the UT5050 ovens’ premium performance, reliability, safety and quality.

For precise and reproducible temperature performance the "Heraeus UT5050 oven combines the highest standards of workmanship with long-lasting reliability. Offering a high level of performance for thermal processes that require increased fresh air supply, short process and heat-up times, and precise heat control to 250°C.

Features

  • Simplicity of use. Temperature is regulated by a precise thermal controller with a simple large, clearly marked setting dial.
  • Uniformity. Recirculated air drying oven providing constant temperatures ensuring minimal spatial temperature deviation +/– 2 K at 250°C
  • Easy-to-clean. An interchangeable silicone door gasket, removable shelf supports and rounded corners make cleaning easy and safe.
  • The all-purpose answer. Forced fan air circulation with chamber bleed exhaust control to meet all types of controlled drying needs.
  • Easy Connection. Simple, single phase 230 Volt, 13 Amp plug operation.

Technical specifications:

  • Variable damper exhaust
  • Direct read thermostat
  • Safety policeman thermostat
  • 2 kW heat load (9A)
  • 240 Volt operation
  • Hot air re-circulation fan
  • 1 shelve provided
  • Interior volume L 110
  • Operating temperature from + 10°C above ambient to 250°C





pdf icon Print / Download Heraeus UT5050 Bench Top Oven Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
