Riley Thermal World HDH-OV-430-SS-F-300-DIG-OVEN

New

Price [?]
£ Login or Register for price
Guarantee
1 year manufacturer guarantee
Availability
Available for immediate collection
Stock No
OV1621
Manufacturer
Riley Thermal World
Model
HDH-430-SS-F-300-DIG
Year of Manufacture
2017
Serial
17B019
New or Used
New
Internal Size (WxDxH mm)
1080 X 550 X 925
Max Temp
300°C
Other Info
Brand new, in stock & available now
Weight (kgs)
150 kG
External Dimensions (WxDxH mm)
1250 x 725 x 1350

Description

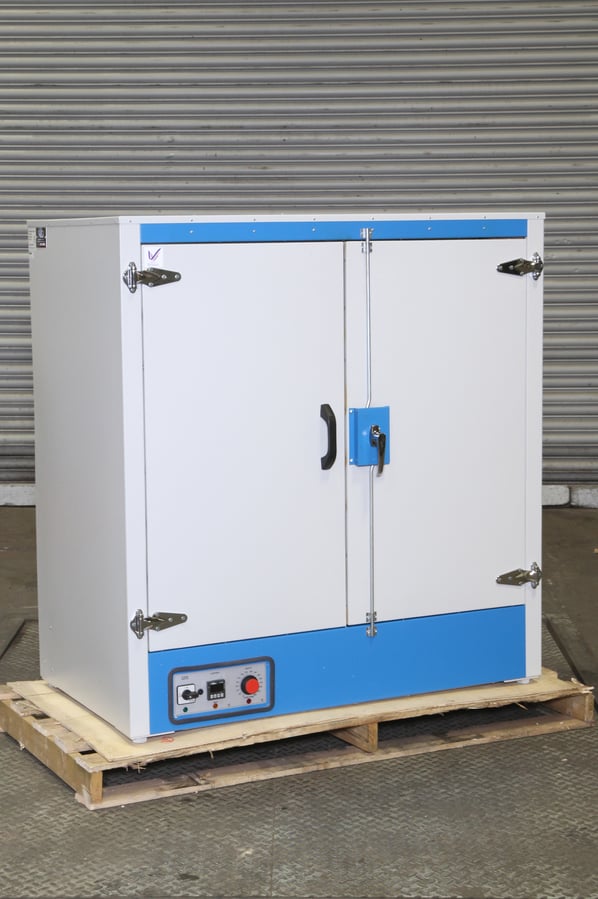

From our range of Riley Thermal World general purpose industrial batch and laboratory ovens the HDH-430-SS-F-300-DIG is our new twin door model.

The HDH-430-SS-F-300-DIG Model is a 430ltr capacity oven with an operational temperature range of 50 - 300°C

Used in Industries:

General Engineering / Thermal processing
Basic Research / Research Institutes
Electronics / Semiconductor Industry
Plastics / composites Industry
Human / Veterinary Medicines

Riley's range of industrial batch ovens sets the standard for a wide range of industrial processing applications with standard features that include:

  • Ascon K49 micro processor temperature controller with auto tuning function
  • Over heat protection system
  • SSR relay
  • High quality thermal insulation
  • 3 stainless steel wire shelves
  • Short heat up time
  • Heating is from all four sides
  • Hermetically sealed silicon door seals
  • 3 kW Low power consumption
  • Excellent performance and reliability
  • The external construction is clad in mild steel sections, with a powder painted exterior
  • Air circulation within the chamber is critical for efficient and uniform heating and horizontal air flow is achieved via twin fans which maximise temperature uniformity
  • Fitted with twin side hinged doors

Technical specifications:

Temperature range max 300ºC
Chamber dimensions, mm W 1080 x D 550 x H 925
Chamber Material St. steel
Volume L 420
External dimensions, mm W 1250 x D 725 x H 1350
Power kW 3
Voltage V 230
Weight kg 150

pdf icon Print / Download Riley Thermal World HDH-OV-430-SS-F-300-DIG-OVEN Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
