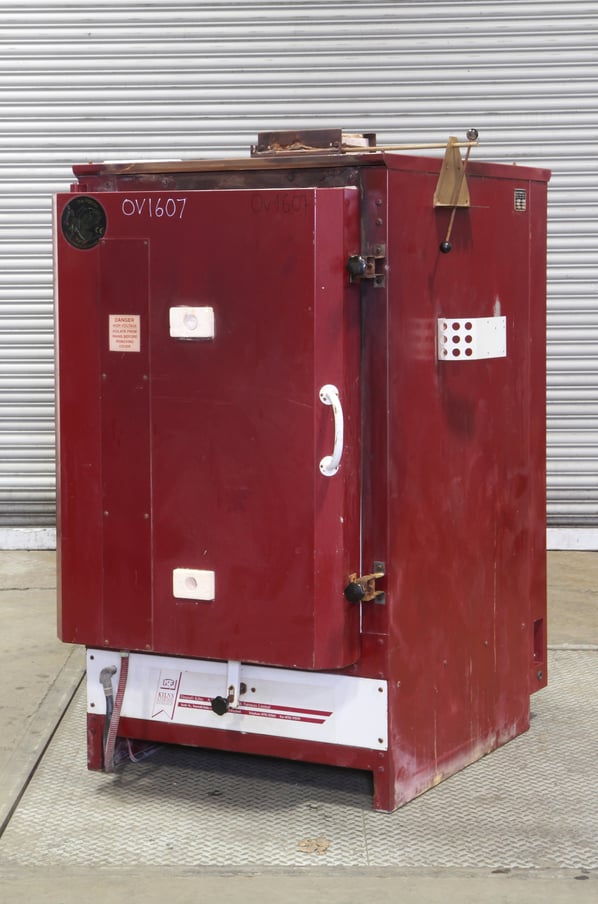

Kilns and Furnaces Falcon 1000°C Kiln / Furnace

Special Offer

Refurbished Price [?]
£ 3,250 (+ VAT)
Special Price (sold as seen) [?]
£ 1,950 (+ VAT). Available for immediate collection.
Special offer ends
14 December 2017 14:00 GMT while stocks last
Stock No
OV1607
Manufacturer
Kilns and Furnaces
Model
FL500
Serial
96FL5019
Internal Size (WxDxH mm)
615 X 910 X 910
Max Temp
1000
Other Info
Controller options avilable
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
590
External Dimensions (WxDxH mm)
1010 X 1400 X 1830

Description

This furnace offers the large capacity and robust construction required for general workshop use.

Traditional hard wearing refractory materials used for the chamber entrance provide good resistance to accidental damage. A solid support for heavier furnace loads can be added as a single hearth hard tile or a frame can be constructed to support multiple products.

Free radiating coiled wire elements to 5 walls supported in open grooves, together with low thermal mass insulation, power this furnace to working temperature in approximately 40 minutes, and provide efficient and reliable operation.

A selection of plug in removable instruments allow the furnace to be tailored to meet the specific heat profile of the work in hand (see below for options)

Features

  • Front loading for ease use.
  • 510 litres capacity
  • 24.5 kW loading 3ph + N, 400V, 40 Amps
  • Maximum design temperature – 1300 °c
  • Free standing stove enamel paint finish
  • Highly thermally efficient construction
  • High grade spiral wound elements fitted to sidewall, door and base
  • Uk compliant electro mechanical door interlock system
  • Over temperature protection
  • Ventilation cooling port
  • Instrument socket to accept all controllers in the range

Typical uses of high temperature furnaces

Metal industry

  • Preheating
  • Tempering
  • Forging
  • Heat Treatment Metals
  • Weld / Metal Coating
  • Stress Relieving
  • Hardening
  • Refining
  • Brazing
  • Wax Burnout
  • Retorts
  • Calcining
  • Ornamental

Ceramics

  • Decoration
  • Biscuit / Glost
  • Hi Temperature
  • Felspatic Porcelains

Temperature controllers options

Note Model ST312 supplied as standard all other options at additional cost.

<th> </th><th> </th><th> </th>
ST312The ST312 is a single program controller. It is fully adjustable with a detailed 6-lamp mimic display. The program comprises 2 ramps followed by a soak. Ramps can be heating or cooling. It executes a controlled ramp to temperature t1 then it executes another controlled ramp to temperature t2. It soaks at t2 for the required period. Natural cooling then follows.





ST314The ST314 is a single program controller. The program can have from 1 to 9 segments. It is fully adjustable with a detailed 5-lamp mimic display & continuous display of segment number. Each segment comprises of a ramp followed by a soak. Ramps can be heating or cooling. It executes a controlled ramp to the soak temperature where it dwells for the required period then executes the next segment. The end of the program is marked by selecting ‘End’ while entering a ramp rate. Natural cooling then follows.



ST315The ST315 is a 9-program controller. Each program can have up to 9 segments. It is fully adjustable with a detailed 5-lamp mimic display & continuous display of program & segment numbers. Each segment comprises of a ramp followed by a soak. Ramps can be heating or cooling. It executes a controlled ramp to the soak temperature where it dwells for the required period then executes the next segment. The end of the program is marked by selecting ‘End’ while entering a ramp rate. Natural cooling then follows.



ST316The ST316 is a 9-program controller. Each program can have from 1 to 9 segments. It is fully adjustable with a detailed 6-lamp mimic display & continuous display of program & segment numbers. Each segment comprises 2 ramps followed by a soak. Ramps can be heating or cooling. It executes a controlled ramp to temperature t1 then it executes another controlled ramp to temperature t2. It soaks at t2 for the required period then executes the next segment. The end of the program is marked by selecting ‘End’ while entering a ramp rate. Natural cooling then follows.



ST325The ST325 is a program controller. Its large illuminated 32 character display makes it easy to set up & use. Setting up is performed using an on-screen menu system and during firing full status information is displayed.



pdf icon Print / Download Kilns and Furnaces Falcon 1000°C Kiln / Furnace Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
