Carbolite LMF 12/7 Toolroom Furnace

Stock No
OV1605
Manufacturer
Carbolite
Model
LMF12/7
Serial
6/85/726
New or Used
Used (Second Hand)
Internal Size (WxDxH mm)
145 X 300 X 120
Max Temp
1200°C
Other Info
Bench top model
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
47
External Dimensions (WxDxH mm)
510 X 615 X 630

Description

The Carbolite LMF 12/7 laboratory chamber furnaces, are general purpose furnaces with a maximum operating temperature of 1200 °C. Suitable for a range of thermal processes including analytical through to heat treatments.

Standard features

  • 1200°C maximum operating temperature
  • 1 piece cast muffle with embedded elements
  • 7, litre chamber volume
  • Cam over up & away door keeps the heated surface away from the user
  • Energy efficient low thermal mass insulation
  • Free radiating wire wound elements pitched for optimum uniformity

LMF 12/7
Max temp (°C) 1200
Max continuous operating temp (°C) 1100
Volume (litres) 7
Heat-up time (mins) 90

Dimensions:
Internal W x D x H (mm)
145  X 300 X 120
Dimensions:
External W x D x H (mm)
510 x 615 x 630
Temperature uniformity of ± 5°C
Max power (W) 3100
Holding power (W) 1500
Thermocouple type K
Weight (kg) 47

pdf icon Print / Download Carbolite LMF 12/7 Toolroom Furnace Datasheet

Additional files

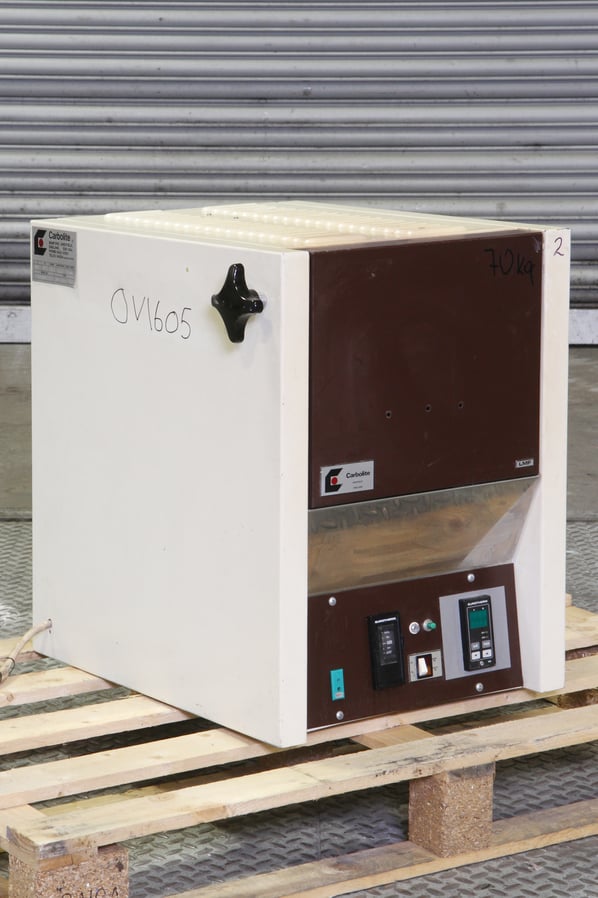

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
