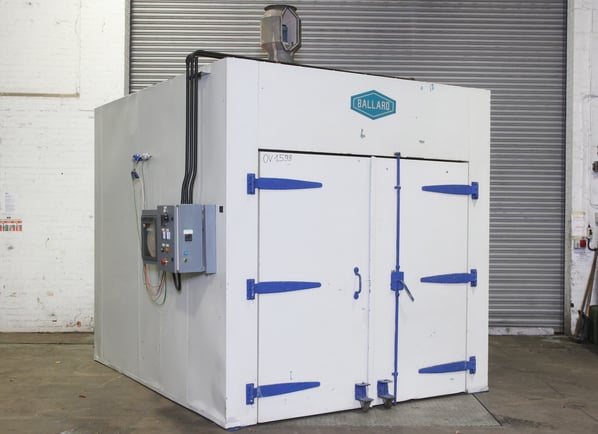

Ballard 2 x 3 x 2 Gas Fired Oven

Stock No
OV1598
Model
Box curing oven
Serial
2140
New or Used
Used (Second Hand)
Internal Size (WxDxH mm)
2000 x 3050 x 2000
Max Temp
250 ° C
Other Info
heavy Duty Industrial Oven
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm)
2900 x 4320 x 3500

Description

This secondhand Ballard oven has been built to exacting standards and is ideally suited to the paint and powder paint industries.

Construction:-

The Oven is complete with heavy duty insulated and reinforced swing doors. The body is manufactured of Double Skin Galvanised Steel panels, with high grade rockwool Insulation. The explosion relief system is incorporated in the oven roof area and comprises of special panel work which is specifically designed to disintegrate and vent off to atmosphere should an explosion occur within the oven.

To ensure good performance, the Ballard oven incorporates a medium pressure multi-vane centrifugal fan complete with scroll casing to provide a positive and well controlled air movement. Large duct work and return vents ensures that the high air volume will not disturb the product.

The Oven is equipped with an internal safety door handle to prevent operator entrapment.

Features:-

To ensure a safe start up and shut down sequence, the Oven includes an electronic sequence control system. This system ensures that the heater will only switch on once the fans have safely evacuated any solvent or gas fumes that may have accumulated. At the end of a shift, a simple press of the button initiates the controlled shut down cooling sequence, allowing the fans to cool the heater properly prior to shutting down fully.

The Natural gas package burner producing ensures quick response and cycle times are achieved whatever the loading.

Internal usable dimensions 2000 x 3050 x 2000 mm high
External dimensions 2900 x 4320 x 3500 mm high

pdf icon Print / Download Ballard 2 x 3 x 2 Gas Fired Oven Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
