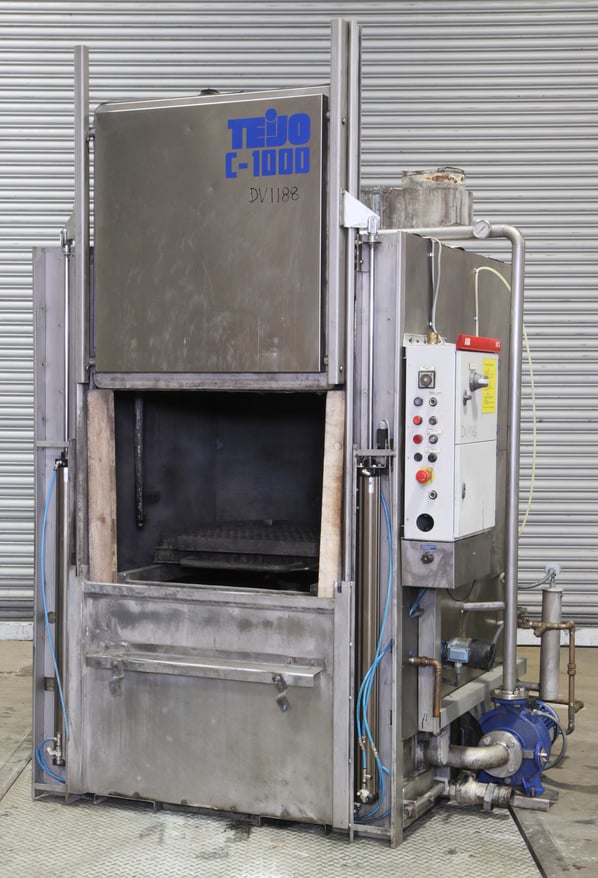

Teijo C-1000SS PD1 Front Loading Aqueous Part Washer

Special Offer

Refurbished Price [?]
£ 7,750 (+ VAT)
Special Price (sold as seen) [?]
£ 4,750 (+ VAT). Available for immediate collection.
Special offer ends
14 December 2017 14:00 GMT while stocks last
Stock No
DV1188
Manufacturer
Teijo
Model
C-1000SS PD1
Year of Manufacture
2003
Serial
103087
Work Envelope (WxDxH mm)
850 x 860 x 850
Process Stages
1
Other Info
All Stainless Steel Construction
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
400
External Dimensions (WxDxH mm)
1750 x 1500 x 2500

Description

The TEIJO cleaning machines are designed for efficient cleaning of industrial parts with pressurised hot water plus bio-degradable detergents.

These machines have a a very low operating cost and solution consumption.

The body and structure is fully made of corrosion free and long lasting stainless steel materials and heavy duty components and are the correct choice of machine for heavy duty cleaning of oil, grease, and production residues from the surface of parts and fabrications.

This machines is equipped with stainless steel pump, nozzles, and heaters with motorised spinning booms.

TEIJO cleaning machines circulate the washing fluid (water and 2–5% alkaline cleaning agent) in a closed system, and filters it as it does. The sump tank is equipped with twin 12kW heaters to drive the temperature up to the desired set point and an integral oil skimmer is used to remove any tramp oil. The solution levels are automatically maintained with the autofill facility.

In industry manufacture, these machines are used for:-

  • COMPONENT CLEANING BEFORE WELDING
  • REMOVING ANTI-CORROSIVE AGENTS BEFORE MACHINING
  • CLEANING MACHINED COMPONENTS
  • MAINTENANCE AND OVERHAUL

Typical examples of are:-

  • CAR AND LORRY REPAIR SHOPS
  • ENGINE MACHINING SHOPS
  • CAR ELECTRICS REPAIR SHOPS
  • VOCATIONAL EDUCATION INSTITUTIONS
  • INDUSTRIAL REPAIR SHOPS
  • PUMP REPAIR SHOPS
  • ELECTRIC MOTOR REPAIR SHOPS

Benefits of this type of wash chamber washer are:-

  • EXCELLENT CLEANING RESULT
  • CLEANING IN A CLOSED CHAMBER
  • ROTATING SPRAY PIPES
  • LARGE FLUID TANK
  • SHORT HEATING TIME
  • RELIABLE AND EASY-TO-USE
  • MINIMUM MAINTENANCE
  • THERMALLY INSULATED STRUCTURE

Machine features and specifications include:-

  • PNEUMATIC LIFTING DOOR
  • ROTATING SPRAY PIPES
  • CLEANING CRADLE AND GRID PLATFORM
  • SHUT-OFF VALVE ON THE PUMP’S SUCTION SIDE
  • FILTER BASKET STRAINER
  • LOW LEVEL FLUID SENSOR
  • CLEANING DOOR AND DRAIN VALVE
  • STEAM EXTRACTOR
  • MOUNTED OPERATOR CONTROL PANEL
  • WASH PRESSURE GAUGE
  • TOP SPRAY PIPE ROTATION SENSOR
  • TANK BOTTOM FLUSH CLEANING PIPEWORK
  • TIMER FOR HEATING AND OIL SEPARATOR
  • ADJUSTABLE THERMOSTAT CONTROLLED TEMPERATURE CONTROL
  • CONNECTED POWER 17KW
  • HEATER POWER 12KW
  • SUMP TANK VOLUME 650 LITRES
  • PUMP FLOW 200L/MIN
  • PUMP PRESSURE 400kPa
  • PUMP MOTOR 4KW
  • MAXIMUM COMPONENT SIZE Ø890 X 800
  • MAXIMUM TABLE LOADING 500KG



pdf icon Print / Download Teijo C-1000SS PD1 Front Loading Aqueous Part Washer Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
