Machines & equipment for sale

Barlow Whitney E300/222 Box Oven

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability:
In stock now
Buy Now Add to Quote Contact Us
Stock No
OV1577
Manufacturer
Barlow Whitney
Model
E300/222
Serial
YD13026
New or Used
Used (Second Hand)
Internal Size (WxDxH mm)
610 x 600 x 610
Max Temp
300°C / 3KW
Other Info
Traditional style industrial oven
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
212
External Dimensions (WxDxH mm)
1320 x 820 x 1735

Description

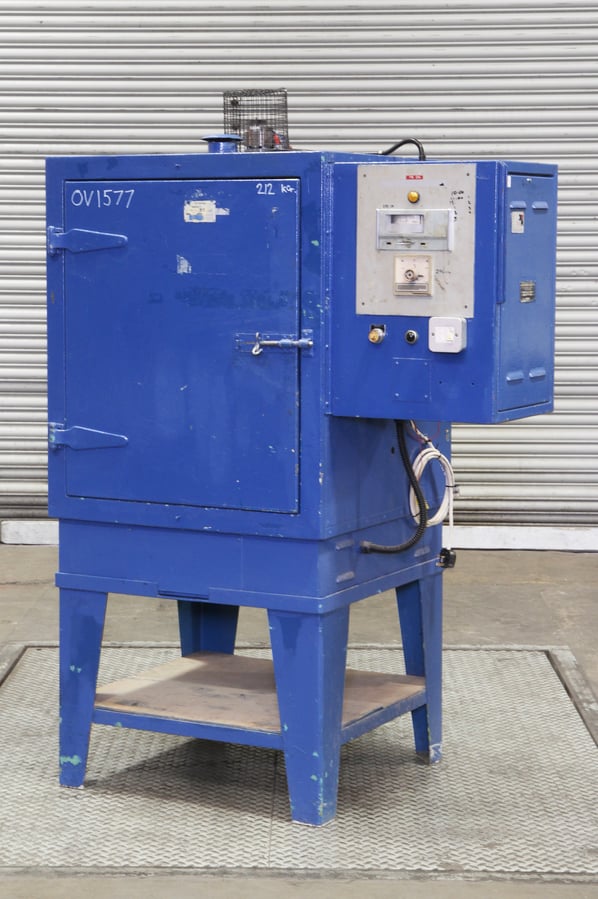

A pre-owned Barlow Whitney E300/222 Box Oven

Numerous processes used in today's manufacturing industries need the application of heat for either the curing, stoving, drying, annealing, pre-heating or baking of a product or a coating. These can be undertaken using a Box Oven.

Where the work piece is simply not suitable for hanging on a conveyor, where the quantity to be processed is relatively small or where there is a variety of product shapes and sizes to be processed then a forced air re- circulation Box, or Batch Oven as it is sometimes called, is what is required.

Whether it's curing composite materials, powder coatings, plastic components - or drying insulation materials, lacquer finishes - or pre-heating and annealing components all these applications can be catered for with a Box oven.

Providing and maintaining uniformity of temperature for critical application such as in the Aerospace industry where specifications are the norm.

A Forced Air Recirculation Box Oven addresses all these problems because:

Even temperature is provided by the Ovens vertical flow warm air re-circulation system thereby eliminating the risk of scorching a surface finish.

Features include:

  • - Variable fresh air inlet
  • - Dial type temperature control
  • - Vent to atmosphere
  • - Heat load 3kW
  • - 240 Volt single phase operation
  • - Vertical air flow
  • - Single front door
  • -Stand mounted for ease of loading



Electrical details:

230V, 1ph, 15Amps

pdf icon Print / Download Barlow Whitney E300/222 Box Oven Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
