Serfilco TITAN CLN100 Auto Recycling Filter

Stock No
TV182J
Manufacturer
Serfilco
Model
TITAN CLS100 S2934 2
Serial
582878110703
New or Used
Used (Second Hand)
Process Stages
Auto cycle
Other Info
Cost NEW over £16,000.00
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm)
1250 X 1800 X 1730

Description

TITAN CLN100 Auto Recycling Cleaning Fluid Filter

Filtering Metal Finishing Process Solutions for cleaning and recycling cleaning machine solutions.

Performance: Down Flow 100 gpm

Flow rates to 100 GPM Capture low ppm suspended solids exiting in cleaning solutions from aqueous cleaning solutions

Designed specifically for aqueous cleaning solution waste applications. Satisfy regulatory requirements easily and economically with flow rates to 100 GPM.

A TITAN filtration system continuously recirculating solutions will capture escaping solids and can achieve 0.5 ppm with proper re circulation. In fact, polished solutions can be re-used directly back into the machine

The SERFILCO TITAN is an automatic backwash system which uses permanent filter media of a specific size, shape and density that creates a filter bed through which contaminated solution is fed at controlled limits of flow and pressure.

Microprocessor control automatically maintains constant design flow without compacting particles onto the media bed.

The automatic cycle, programmed for optimum use of backwash fluid, responds automatically to a preset minimum flow rate. Prior to the automatic backwash cycle, process solutions are purged from the system with low pressure air. During the backwash cycle, particles exit the chamber without media migration.

The process occurs within minutes, resulting in an extremely efficient backwash for each filter cycle. Re-establishment of the filtration cycle returns the system to design flow.

TITAN systems are specifically designed for use with most aqueous process solutions including cleaners, plating and other metal finishing solutions.

Each TITAN system incorporates a corrosion resistant filter chamber for use with permanent media and has electrically actuated valves, an efficient centrifugal pump, a digital electronic flow meter, pre-wired control panel and pre-programmed PLC.

Automatic control components are housed in a NEMA 12 enclosure, factory wired and test cycled for all microprocessor programs

All units are skid-mounted,  All fasteners are SS. Prior to shipment, all units are wet tested to insure piping integrity, flow rate and complete system operation.

Features

• Automatic, Permanent media, High flow systems
• Produces sparkling clean solutions
• Automatic, microprocessor controlled
• Permanent media
• High flows - to 100 gpm
• Corrosion resistant
• CE Conforming

Benefits

• Dramatically reduces media and disposal costs.
• Improves finished goods and process quality, significantly increases yields, practically eliminates scrap and rework.
• Reduces chemical consumption by maintaining solution quality.
• Minimizes solution maintenance with high flow, continuous particle removal.
• Satisfy regulatory requirements by polishing clarifier overflow.

Specifications

Unique to any other filtration system available, the TITAN series is the result of SERFILCO's ongoing commitment to developing "up flow" and "down flow" permanent media filtration technology.

The combination of high flow permanent media, automatic operation and proven success makes the SERFILCO TITAN superior to any other filter available.

MODEL CLN100

  • MAX. FLOW GPM 100
  • kW 2.2
  • Connections 1 1/2" bsp

pdf icon Print / Download Serfilco TITAN CLN100 Auto Recycling Filter Datasheet

Additional files

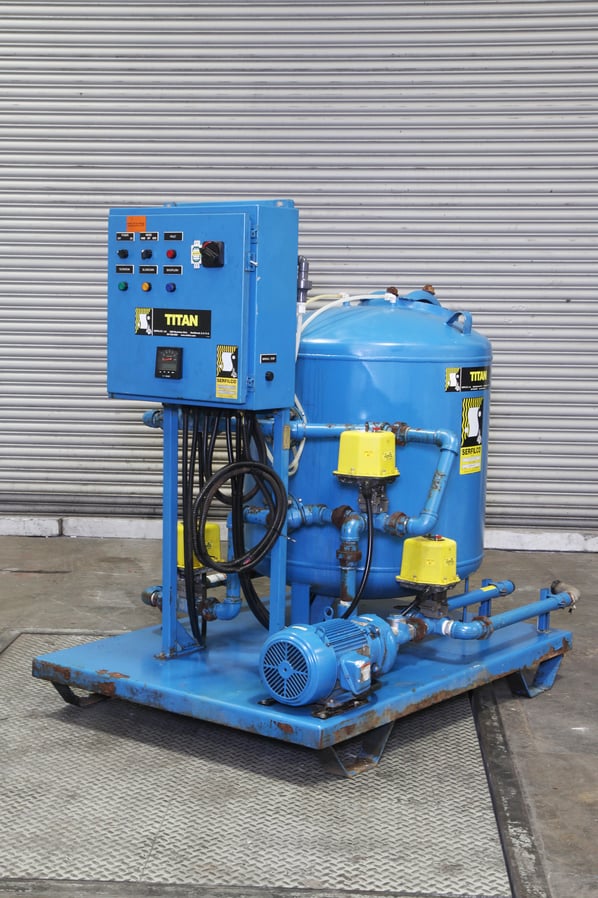

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
