Sessler 8 Station Automated Pre Treatments Line

- Stock No
- HEUN001
- Manufacturer
- Sessler
- Work Envelope (WxDxH mm) [?]
- 1,000 x 1,500 x 1,000
- Process Stages
- 8 stage pre treatments process line
- Location
- Our Central Warehouse, Aldridge, UK
Description
Process sequence
- Loading / unloading station
- Heated soak cleaner
- Cold water rinse
- Running swill (cascade rinse)
- Running swill (cascade rinse)
- Hot rinse seal
- Hot air dryer
- Hot air dryer
Carrier dimensions
Usable carrier dimensions approx. 1,000 x 1,500 x 1,000 mm
Carrier material: 3mm 1.4301 1.4571 stainless steel
Capacity: ca. 200KG
Accessories
- Single transporter with variable speed drive and hoist motors
- Laser guided positional sensors
- Mobile carrier transfer trucks
- Work carrier baskets with forklift frame
- SPS - control software for the automatic control of the system
- Operator control station with Siemens OP7
- Control panel wired according to VDE standards using a Siemens PLC operating system
- Safety emergency operators pull cord
- Transporter anti-collision safety stop
System configuration
Station 1 Loading - unloading
Rectangular tubular frame support and location with pneumatic basket release.
Station 2 Soak Cleaner
1.4301 Stainless steel tank
Internal dimensions: 1200 x 1500 x 1100
Design: Reinforcement, insulated and fully clad with stainless steel
Heating 60°C with stainless steel immersion heaters
Twin rim extraction ducts
Water feed connection
Drain valve
Temperature and level control with solenoid operation
Serfilco bag filter with circulating pump and venturi nozzle return
Station 3 Drag out rinse
1.4301 stainless steel tanks
Internal dimensions: 1000 x 1500 x 1100 each
Design: Reinforcement, insulated and fully clad with stainless steel
Water supply with manual valve
Drain valve
Station 4/5 Twin cascade cold water rinses
1.4301 stainless steel tanks
Internal dimensions: 1000 x 1500 x 1100 each
Design: Reinforcement, insulated and fully clad with stainless steel
Water supply with flow meter 20-200 L / h
Drain valve
Station 6 Hot rinse - seal
1.4301 stainless steel tank
Internal dimensions: 1200 x 1500 x 1100
Design: Reinforcement, insulated and fully clad with stainless steel
Water feed connection
Drain valve
Heating to 80°C with electric stainless steel immersion heaters
Twin rim extraction ducts
Temperature and level control
Station 7 Hot air dryer
Design: Reinforcement, insulated and fully clad with stainless steel
Inner Chamber: 1000 x 1500 x 1100
including:
- 2 x radial fan
- 2 air heaters
- 2 exhaust air throttle valves
- 1 pt 100 temperature sensor
Station 8 Hot air dryer
Design: Reinforcement, insulated and fully clad with stainless steel
Inner Chamber: 1000 x 1500 x 1100
Including:
- 2 x radial fan
- 2 air heaters
- 2 exhaust air throttle valves
- 1 pt 100 temperature sensor
Overall plant length
Approx: 4000w x 12,000d x 4000h mm mounted over a fully welded bund tray.
Currently dismantled for the convenience of sale and stored near Stuttgart, Germany.
Would be suitable for conversion to barrels.
Now professionally dismantled and in storage at our warehouse facility in Aldridge.
Print / Download Sessler 8 Station Automated Pre Treatments Line Datasheet
Additional files

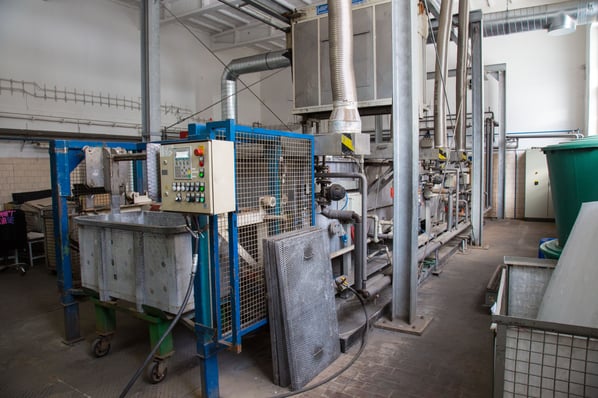

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
