Carbolite NR120F Laboratory Oven

Stock No
OL653
Manufacturer
Carbolite
Model
NR120F
Serial
22287
Internal Size (WxDxH mm)
480 x 500 500
Max Temp
300°C
Other Info
240 volt 10A operation
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
38
External Dimensions (WxDxH mm)
850 x 650 x 660

Description

A Carbolite NR laboratory oven of the Peak series 300°C with fan convection.

The NR120F provides great temperature uniformity and fast recovery rates for general laboratory use.

On the back of the unit are two vents, inlet and exhaust. The vents are covered by baffles, opening the baffles allows the atmosphere  within the chamber to be evacuated either on a bleed or prior to the process end. With this fan version, fumes are pushed out through the exhaust vent by the fan actions, and drawn in through the inlet vent.

Standard Features

  • 300°C maximum operating temperature
  • 120 litre chamber volume
  • Equipped with the Eurotherm temperature controller
  • Fan convection for rapid heating & recovery & excellent uniformity
  • Chemically resistant stainless steel liner
  • Nickel-chrome plated wire shelve
  • Lever latch door & airtight silicone seal
  • Compliant with safety standard BS EN 61010-2-010:2003
  • Access port for independent thermocouple
  • Accessory shelves & runners
  • Door switch to isolate elements and fan
  • Voltage 220 V

NR120F Technical specifications

  • Max temp (°C) 300
  • Min temp (°C) Ambient +30
  • Volume (litres) 120
  • Temp stability (°C) ±0.2
  • Temp uniformity (°C) ±5.0 @ 300°C
  • Heat-up time (mins) 35
  • Recovery time (mins) 4
  • Dimensions:
  • Shelves fitted / accepted 1 / 9
  • Shelf loading each / total (kg) 10 / 40
  • Configuration Bench-top
  • Air changes / hr 11
  • Max power (W) 2000
  • Holding power (W) 900
  • Weight (kg) 38

pdf icon Print / Download Carbolite NR120F Laboratory Oven Datasheet

Additional files

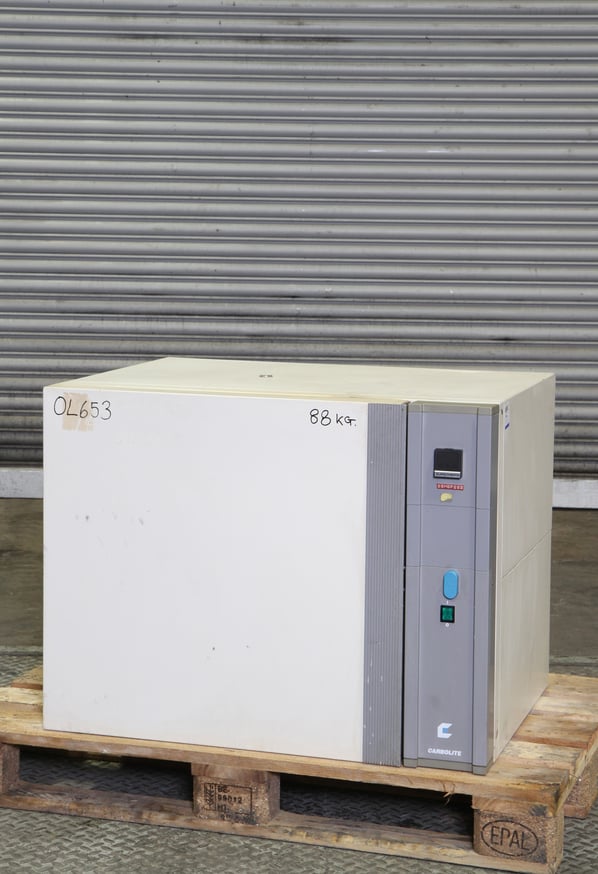

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
