Industvent 30kW Baghouse Filter Unit

Special Offer

Refurbished Price [?]
£ 17,500 (+ VAT)
Special Price
£ 12,500 (+ VAT)
Special offer ends
14 December 2017 14:00 GMT while stocks last
Stock No
EU1381
Model
Industvent
Year of Manufacture
1995
Approx Duty CFM / M³/Hr
15000 // 25500
Filter Area ft² / m²
2500 / 245 M2 approx
Other Info
Large capacity Baghouse Filter Unit
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm)
Filter Unit 3350 x 2680 x 3350

Description

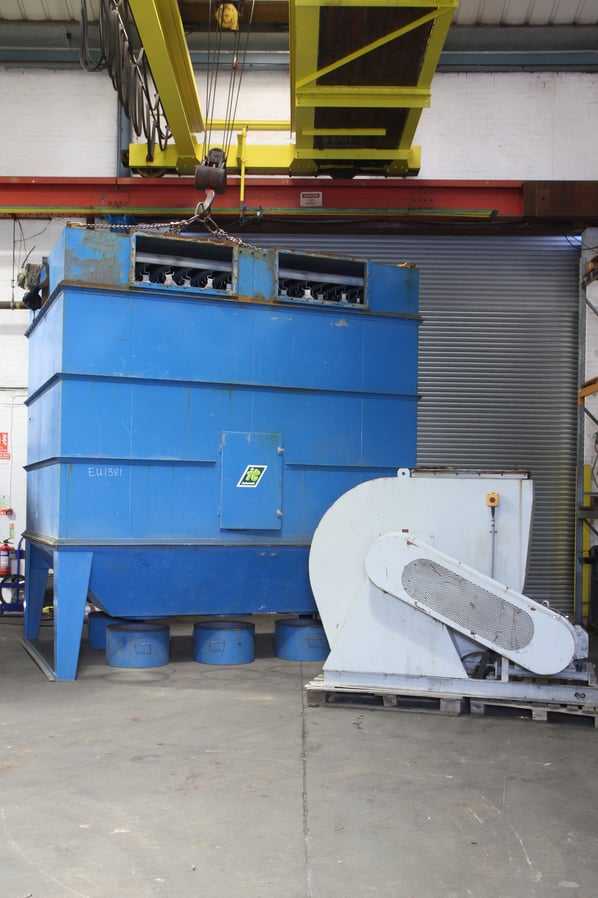

The Industvent is a robust, free standing filter unit with an automatic shaker cleaning system.
It based upon over thirty years of continuous production experience.

Industvent Dust Extractor Unit with floor mounted belt driven extraction fan with a motor capacity of approx 30 kW pulling approx 15000 CFM.

The dust is trapped by 160 number 5 micron Polypropylene 200mm dia x 2450mm high filter cloths for collecting dust and fibres from operating stations prior to discharge to atmosphere. (professionally cleaned prior to removal)

A shaker motor (0.33kW approx) removes the trapped dust which is then collected in 6 dust collection bins below.

It is designed for intermittent use, where the filter can stop occasionally for cleaning off line.

Advantages

  • All access for maintenance from the front of the unit
  • Dust bin with quick release mechanism
  • Compressed air not required
  • Efficient , automatic, electric motor driven shaker mechanism
  • Neat appearance suitable for commercial and educational applications
  • Weather proof for location anywhere

Technical Parameters:

  • Maximum working temperature 80ºC
  • Maximum negative pressure 4000 Pa
  • Maximum positive pressure 1500 Pa
  • Wide range of filter materials to suit most applications
  • external, high efficiency fan
  • Versatile inlet connections including QF-type ducting
  • All electrical connections pre-wired to terminal box on unit

Fan Details

  • Alpha Fans serial number 6070
  • 30kW motor size
  • Ø 915 mm inlet diameter
  • 900 x 700 mm outlet
  • Backward curved fan impeller
  • Fan body size (l x w x d) 1900 x 890 x 1700 mm
  • Overall dimensions (l x w x d) 2400 x 1650 x 1700 mm

pdf icon Print / Download Industvent 30kW Baghouse Filter Unit Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
