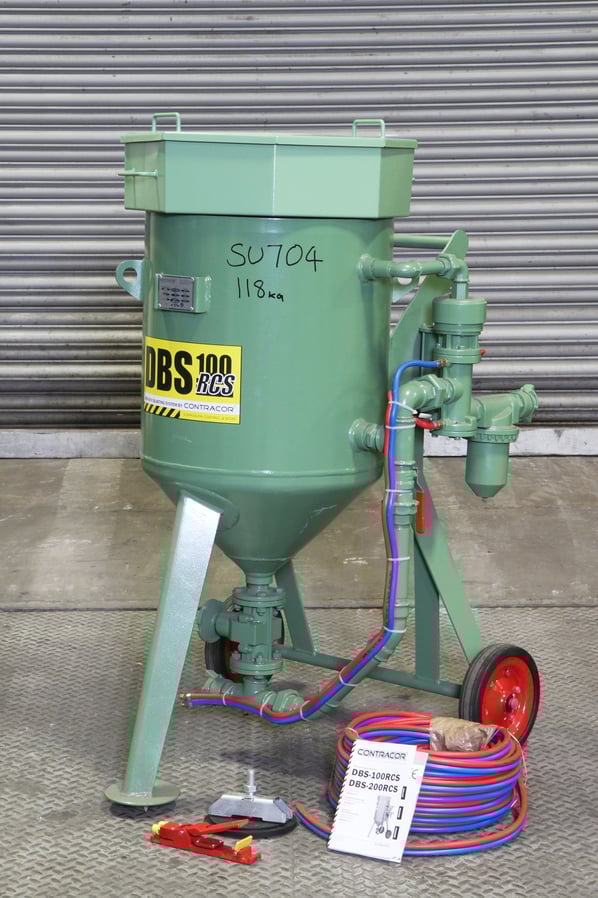

Contracor DBS - 100 RCS Shotblast Pot

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability
Available for immediate collection
Condition
Ex Demonstration
Stock No
SU704
Manufacturer
Contracor
Model
DBS - 100 RCS
Year of Manufacture
2015
New or Used
Used (Second Hand)
Work Handling Method
Manual
Other Info
100 Litre Ex Demo
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
110
External Dimensions (WxDxH mm)
508 Ø x 1226mm high

Description

Includes the following component parts:

- DBS 100RC Blasting Machine
- Extrablast-25 40m abrasive blasting hose
- CQP-1 Coupling
- NHP-1 Nozzle Holder
- RTC-6,5 Nozzle

DBS 100RC Specification:
- Maximum working pressure 12 bar (174psi)
- Vessel Capacity 100l
- Working Temperature -10 - +50°C
- Vessel Diameter 508mm
- Vessel Height 1226mm
- Weight 110kg
- Remote Control Device with a pneumatically operated RC main valve

Extrablast-25 Specification:
- Interior diameter - 25mm
- Exterior Diameter - 40mm
- Pressure - 12 bar (174psi)
- Length - 40m

CQP-1 Specification
- Used for coupling hoses of internal diameter 25mm

NHP-1 Nozzle Holder Specification
- For use on blasting hoses of internal diameter 25mm
- Material: Nylon
- Has a 50mm thread for nozzle attachment

RTC-6,5 Nozzle Specification
- Venturi Type Nozzle
- Constructed from wear resistant tungsten carbide

To see a full description of the products being offered, and our complete Contracor shot blasting range please visit the following link for our pdf brochure:
http://www.rileysurfaceworld.co.uk/pdf/ContracorUKcat.pdf

pdf icon Print / Download Contracor DBS - 100 RCS Shotblast Pot Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
