HPC Plus Air Screw Compressor

Stock No
AU121
Manufacturer
HPC
Model
PULSAIR SK 19
New or Used
Used (Second Hand)
CFM/Kw
60/11Kw
Compressor Type
Screw Compressor
Other Info
Compact design
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
334
External Dimensions (WxDxH mm)
770 x 770 x 1000

Description

HPC compressed air equipment is designed and engineered with the quality and  forethought required to meet the demands of today’s rigorous manufacturing, industrial and automotive applications.

The SK Series is a range of compact, yet highly efficient and reliable rotary screw  compressors.

HPC Plusair :

SK Series design features include:

  • Two stage air intake filter to ensure the air for 10 compression is clean and dust  free to 3 micron.
  • High efficiency CEMEP EFF1* electric motor with thermal overload protection.
  • SIGMA Fluid injection port for the sealing, cooling and lubrication within the airend
  • Air/Oil separator with min/max oil level sight glasses, safety valve and pressure  gauge.
  • Oil cooler designed for up to 15bar working pressure
  • Micro oil filter designed specifically for higher pressure heavy duty operation.
  • Oil separation cartridge. High flow, multistage high efficiency separation. Oil  carry-over typically 1-3ppm+.
  • Minimum pressure non return valve to maintain internal off load pressure at 1.5  bar.
  • After cooler typically provides compressed air discharge temperatures of 60°C  above ambient this means that less energy is required to dry the air downstream.
  • Thermostatic valve ensures rapid warm up and minimises condensate  accumulation.
  • Air inlet valve controls the air intake of the compressor.
  • Control and Separator Vent Valve linked to operating pressure to ensure and  maintain off-load running.
  • Belt Drive High efficiency positive drive allowing pressure flexibility of 0.5bar  increments.
  • Automatic belt tensioning device maintains optimum transmission adjustment.

Technical Specifications

Power capacity: 11 kW
Feed pressure: 7.5 bar
Litre capacity: 1700 l
Turning speeds: 3000 U/min
Operating pressure: zul. 8 bar
Coolant capacity: 1,7 m³/min
Weight of the machine ca.: 334 kg
Dimensions of the machine:  770 x 770 x 1000 mm



pdf icon Print / Download HPC Plus Air Screw Compressor Datasheet

Additional files

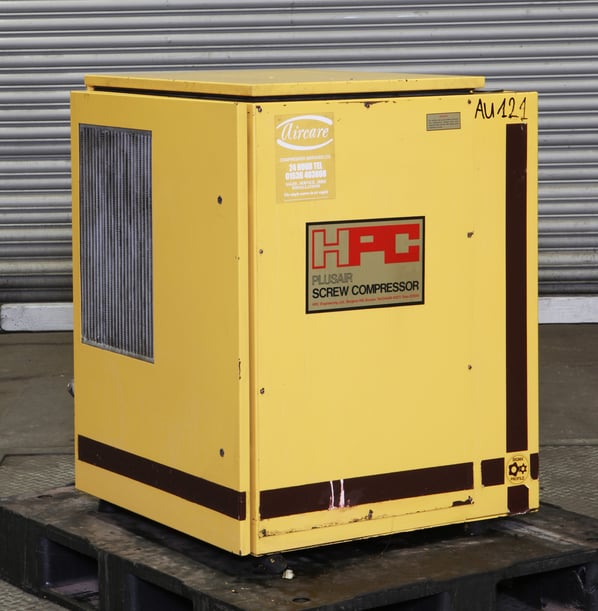

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
