Machines & equipment for sale

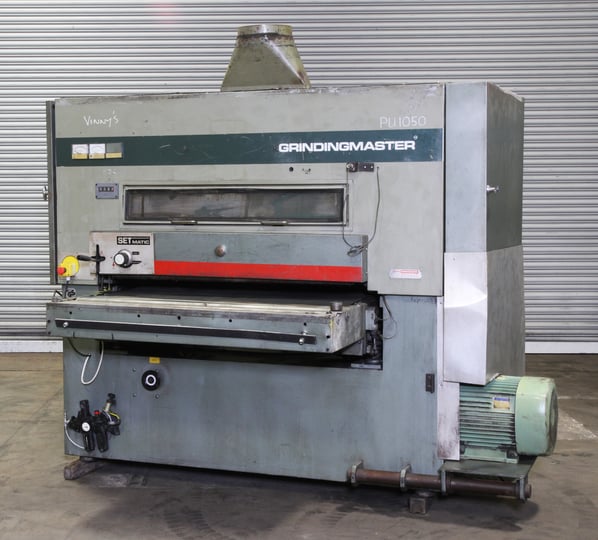

Ellesco Grindingmaster Setmatic 1250 Wide Belt Grinding Machine

Special Offer

Special Price (refurbished) [?]
£ 8,750 (+ VAT)
Special Price (sold as seen) [?]
£ 3,950 (+ VAT). Available for immediate collection.
Special offer ends
13 December 2018 15:00 GMT while stocks last
Stock No
PU1050
Manufacturer
Ellesco
Model
MCSB/2B-1250
Serial
KK 91008
R.P.M.
1500
Other Info
Sold as a single head belt only machine
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm)
2700 x 1850 x 2000

Description

This pre owned Ellesco Grindingmaster is a premier industrial metal working multi finishing machine.

The MCSB/2B-1250 was originally a 1250mm wide belt and brush/roll dry working Grindingmaster equipped with powerful motors allowing it to process the toughest and heaviest jobs around.

Currently being offered as a single belt 1250mm wide belt grinding machine as one side of the roll brush support assembly is missing.

Typical process applications covered by this machine:

- Stock removal of multiple individual parts and sheet materials
- Grain finishing of any material.
- Sizing and finishing of parts and sheet materials
- Deburring punched, nibbled, sheared or laser-cut sheet metal parts.
- Calibrating or keying carbon, rubber, wood or other soft materials.

Standard features include:

- Centralised operator control panel.
- Full 1250mm working width
- Wide belt head with fine adjustments of contact roll, 150 mm overall clearance.
- 4 x ridged, precision made, rubber coated, work piece hold down rolls per station.
- Setomatic motorised, single point thickness setting.
- Floating or fixed table option
- Thickness read-out.
- Conveyor reverse for set-up.
- Variable speed table motor.
- Dust extraction funnel
- Load amp indicators
- Belt oscillation
- Front edge safety bump E stop
- Pneumatic tensioning
- Air actuated braking

Available to purchase separately from our dust control section, you will be able to find a suitable dust control plant to match your particular process application whether it be wet or dry.

Grindingmaster MCSB/2B-1250

1 x Polishing Contact Wheel-12500mm Wide x Ø280 mm
Belt Size-1250mm x 2220mm
Powerful drive motor
1250mm Wide Conveyor
External dimensions:
Working Depth from 1mm to approx. 150mm
Hours Use:- 4918

pdf icon Print / Download Ellesco Grindingmaster Setmatic 1250 Wide Belt Grinding Machine Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
