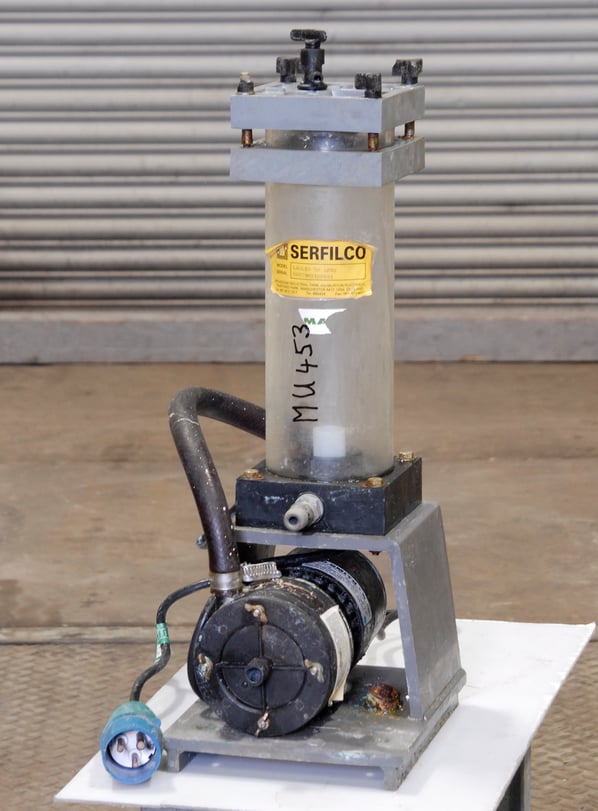

Serfilco CL1 Labmaster Filter Pump

- Stock No
- MU453
- Manufacturer
- Serfilco
- Model
- LAUL10 1/2 AP5V
- Serial
- 06059MG100691
- Work Envelope (WxDxH mm) [?]
- 75Ø x 255 filter cartridge
- Other Info
- Wide range of filters commonly available
- Location
- Our Central Warehouse, Aldridge, UK
- Weight (kgs)
- 10
- External Dimensions (WxDxH mm) [?]
- 230 x 190 x 540
Description
LABMASTER Filtration Systems are compact, corrosion resistant and extremely simple to operate. The chemically resistant construction materials allows use with most liquids, including harsh chemicals at elevated temperatures.
Features
• Flows to 9 gpm or 19 ft. TDH @ 60 Hz
• Non-metallic solution contact
• Continuous duty design
• Quiet, economical, centrifugal pump
• Low maintenance No spindles, bearings or thrust washers
Specifications
The Series 'A' magnetic coupled pumps are seal-less and leak proof, providing total solution and vapor containment. These pumps feature a shaft and bearing free design that allows them to be used for electroless solutions.
The impeller magnet assembly floats in the radial magnetic field set up by the external drive magnet, eliminating the need for a shaft or spindle.
The pump body can be rotated to selected direction of discharge. Neutralising fluid will normally flush the interior adequately without need for disassembly. Impellers supplied on all standard seal-less pumps are suitable for water-like liquids up to 1.2 specific gravity.
Liquids with a higher specific gravity can be pumped if:
1. The outlet flow is restricted so the impeller magnet stays synchronized with the drive magnet.
2. The restrictions from a filter or other source of discharge head loss are sufficient to keep the impeller and drive magnets synchronized.
3. The overall diameter of the impeller is reduced
Material: PVC, CPVC,
Performance: 100 - 300 gph
Features
• Nearly 10 turnovers per hour on 35 gallon tanks
• Non-metallic solution contact
Specifications
Filter Chamber for solids holding capacity Constructed of clear PVC, CPVC. Standard elastomers are EPDM (FKM with PVDF). Chambers accept 10" depth wound, pleated, cleanable sleeve, and carbon cartridges.
Print / Download Serfilco CL1 Labmaster Filter Pump Datasheet
Additional files
Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
