Plasbrun Plastics Engineering Ltd Deburr & Chem Polish 2

Stock No
TT119S
Manufacturer
Plasbrun Plastics Engineering Ltd
Model
Electro chemical process line
Year of Manufacture
2012
New or Used
Used (Second Hand)
Work Envelope (WxDxH mm)
440 x 450 x 310 to 620
Process Stages
5
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm)
3550 x 800 x 1000

Description

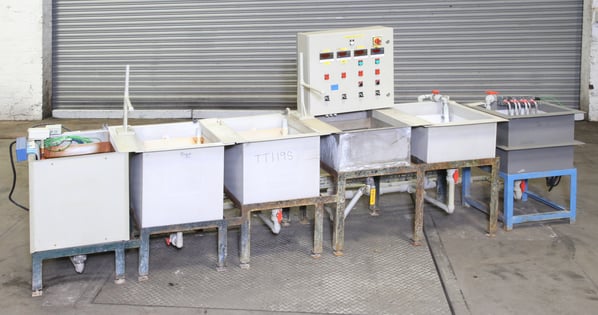

A custom specified multi material constructed electro - chemical process plant originally employed for the deburring and bright polishing of stainless steel components.

The 7 station process line with its 3 heated immersion stations and chemical resistant polypropylene tanks, could alternatively be used for a large number of electroplating and treatment processes such as:

  • Elecroless Nickel
  • Electrolytic Nickle Plating
  • Anodising
  • Brightning
  • Electro-polishing
  • Electro chemical deburring
  • Chemical etching
  • Electrolytic Zinc plating
  • Electrolytic Copper plating
  • Electrolytic Cadmium plating
  • Both Electrolytic and non-electrolytic plate stripping
  • Precisiuos metal deposition such as gold, silver, palladium, rhodium etc.

The system was commissioned for the deburring and bright polishing of stainless steel components in the nuclear fuel industry using a process tanks with internal dimensions of up to 595 x 595 x 460 mm and an original line up of:

Station 1 Heated Stainless Steel tank , with bottom drain, weir overflow, 9kW vat rod electric heaters,and low level protection. With a separate control panel with digital temperature control. 450 x 610 x 620 mm

Station 2 Polypropylene tank, with bottom drain, and weir overflow. 450 x 595 x 535 mm

Station 3 Polypropylene tank, with bottom drain, and weir overflow. 445 x 595 x 465 mm

Station 4 Stainless Steel tank, with bottom drain, and weir overflow. 440 x 605 x 310 mm

Station 5 Polypropylene tank, with bottom drain, and weir overflow. 445 x 595 x 310 mm

Station 6  PVC tank , with bottom drain, weir overflow, 9kW vat rod electric heaters,and low level protection. With a separate control panel with digital temperature control. 450 x 450 x 450 mm

.

pdf icon Print / Download Plasbrun Plastics Engineering Ltd Deburr & Chem Polish 2 Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
