Hendor Series 1 M10 11AK filtration unit

Stock No
Series 1 M10 11AK
New or Used
Used (Second Hand)
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm)
270 x 470 x 760

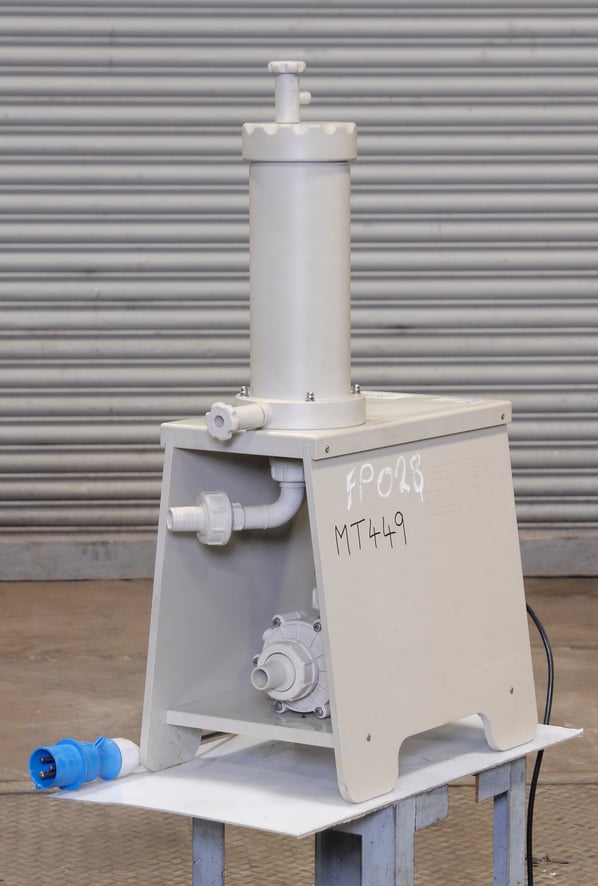

Hendor Series 1 M10 11AK filtration unit

Hendor started manufacturing pumps and filters in 1948 and since that date have gained an enviable reputation of supplying extremely high quality products

1000 litres an hour

Single 10" Cartridge filter housing in polypropylene

Typical applications

    Plating and chemical process industry


•    .18kW Magnetic drive pump

•    Filter chamber with welded bottom (no seal)

•    One filter chamber

•    String wound, spunbonded, pleated or carbon cartridges

•    All PP construction

•    Max. temperature PP 80˚C

•    Unions for rigid piping

•    Standard with 3 phase motor, thermal overload switch, lead without plug, air release and drain valve

Fitted Options

•    Hose connection

•    Single phase motor

•    Single open end cartridge


pdf icon Print / Download Hendor Series 1 M10 11AK filtration unit Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
