Machines & equipment for sale

RGB Oilcooled 1500 Amp 10 Volt DC Rectifier

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Buy Now Add to Quote Contact Us
Stock No
RT695S
Manufacturer
RGB
Model
Oilcooled 1500 Amp 10 Volt DC Rectifier
New or Used
Used (Second Hand)
Voltage
10
Amps
1500
Other Info
Self contained variable output
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
650kgs
External Dimensions (WxDxH mm)
650 x 1300 x 1700 mm

Description

RGB 1500A 10 Volt Oilcooled DC Regulating Transformers

Predominantly used in the electro plating, electro forming, electro paint, electro polishing and motor control industries, to provide a stable DC current supply.

These units have inbuilt regulating transformers to the incoming supply to give variable voltage output.

Technical Data:

  • Mains: 3x400V / 50Hz (worldwide mains-conditions possible)
  • Regulating: digital raise/lower signal  (stepless electronic 0...100%)
  • Signals: current, voltage, status.
  • Control: interface for external control
  • Ripple: <5% over the whole range
  • Operation mode: 100% duty cycle
  • Temperature: +35°C (higher temperature conditions possible)
  • Cooling: oil cooled
  • Degree of protection: control cabinet IP20 - tank IP54

Oil cooling provides:

  • efficient cooling pf all power parts
  • protection from corrosion
  • suitable for outside location
  • silent operation
  • low maintenance and high reliability



Technical Explanation:

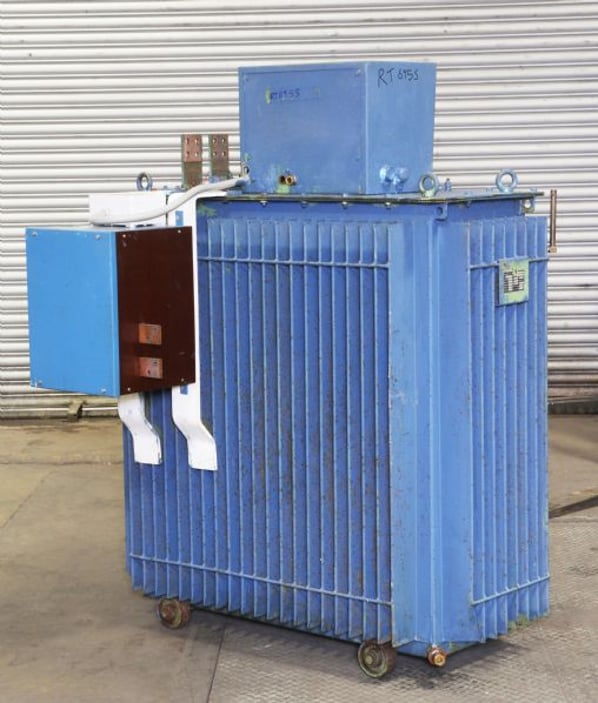

Offer includes side mounted electroloid DC polarity reversing switch. (See Images)

Arranged for push button forward, reverse & polarity.

pdf icon Print / Download RGB Oilcooled 1500 Amp 10 Volt DC Rectifier Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
