Machines & equipment for sale

Dreher CraneCare Lift N Load Hoist

Special Offer

Refurbished Price [?]
£ 950 (+ VAT)
Special Price (sold as seen) [?]
£ 650 (+ VAT). Available for immediate collection.
Special offer ends
13 December 2018 15:00 GMT while stocks last
Stock No
VT1047SJ
Manufacturer
Dreher
Model
Shot Transport
Serial
Various
Capacity
100kg lift capacity.
Type
Loading trug vertical lift unit
Other Info
Dreher VT5 support equipment
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
200kg
External Dimensions (WxDxH mm)
630 x 800 x 2520 mm

Description

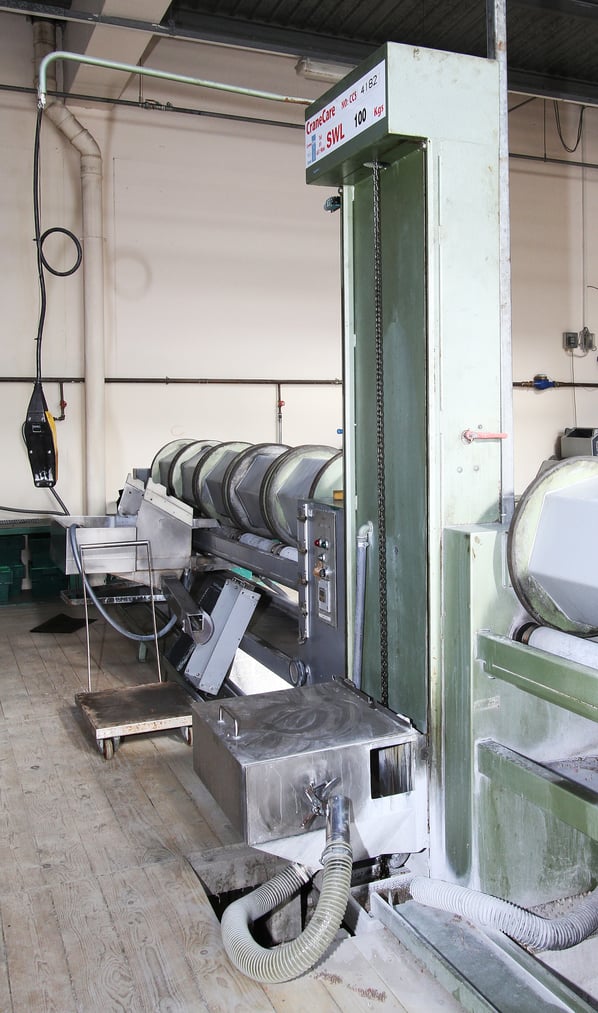

A lift and load Shot Transport device built by CraneCare to work in conjunction the the Dreher VT 5 range of machines (Our stock number VT1037S) for replenishing the media and parts into the processing bowls.

 The hoisting unit is placed at either end of the Dreher VT5 and mates with the machines work station unload tray. After the barrel has been removed from the machine and on to the unload tray, the barrel is opened and rotated to empty both the media and the parts across a screen to separate them.

The media passes through the screen and is collected in the base of the tray. The loader allows the media to be transferred to its own hopper trug which then can be easily lifted to reload the media and parts back into the process barrel to repeat the process. This allows the barrel to be easily loaded and avoids the need for manual lifting of heavy weights.

Load capacity 100kg

Travel speed 6m/min

Power required 0.30kW 400 Volt 3 Phase + N







pdf icon Print / Download Dreher CraneCare Lift N Load Hoist Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
