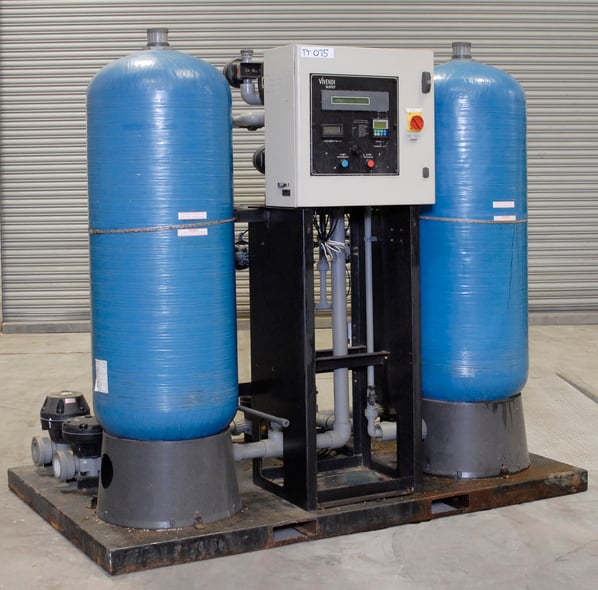

Vivendi De-Mineralised Water Plant

Stock No

TT075

Model

RAPIDE 1500

Serial

718152-006

Process Stages

Twin-bed deioniser

Location

Our Central Warehouse, Aldridge, UK

Weight (kgs)

895kgs

External Dimensions (WxDxH mm)

2100 x 1300 x 2000mm

Description

Rapide™ Strata twin-bed deionisers produce high purity water for a range of industrial applications. The unique design offers savings of up to 40% on running and effluent costs compared to conventional ion exchange systems.

Features & Benefits

• Regeneration in 30-45 minutes using SCION™ technology;
minimises down time, enhances bacterial control, improves chemical usage efficiency
• PLC control and facia mounted display; facilitates monitoring and operation
•Continuous conductivity monitor with auto service shut-off and alarm; ensures water quality
•Continual, intermittent or zero recirculation of water when tank reaches high point; operational flexibility
• Skid-mounted, standardized systems; short lead times, quick installation and start-up

This second hand Rapide Strada two stage twin-bed deioniser produces high purity water for a range of industrial and scientific applications.

Deionisation uses a combination of cation and anion resins to remove all the ions from a water supply to produce purified water.

Features:

• Efficient solution offering up to 40% savings on running and effluent costs
• The Rapide short cycle ion exchange process SCION™ will typically produce a treated water quality of 2 to 0.055 μS/cm

Applications Include:

- Healthcare
- Pharmaceutical
- Surface finishing
- High and medium pressure boiler feed water

Design & Manufacturing

•Skid-mounted, small footprint; facilitates installation
•Minimal start-up time
•Quality controlled manufacturing
•Standardised parts

Max pressure:

-inlet - 1/15 BAR
-working - 7/105 BAR
415v / 3ph / 50H

Print / Download Vivendi De-Mineralised Water Plant Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
