Machines & equipment for sale

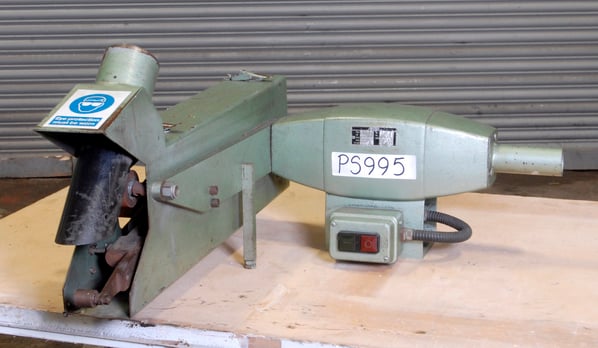

Greif D20-0-0 bench top Linisher - polisher

Stock No
PS995
Manufacturer
Greif
Model
D 20-0-0
Serial
20763
New or Used
Used (Second Hand)
R.P.M.
3000
Hp/Kw
0.55kw
Other Info
Small but high powered unit
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
25kgs
External Dimensions (WxDxH mm)
650 x 750 x 400mm

Description

GREIF-bench mounted belt grinder was designed for high material removal in industrial and commercial applications. They are highly qualified for both deburring and grinding of welding seams as for cleaning of castings, etc

The special belt grinding attachment is suitable for several purposes, for which small contact wheels are needed, as for example for the root grinding of turbine blades.

Contact wheels with a dia. of 15 to 50 mm and a width of 15 to 50 mm can be mounted onto the belt tensioning arm with the help of quick-change adapters

Because of the extremely high speeds of the contact wheels they are equipped with air cooling as well as high temperature grease in the bearings.

The grinding performance D20-0-0 Linisher is second to none.

  • high speeds grinding from the abrasive belt because of an optimum combination of motor speed and dimensioning of the drive wheel and contact wheels.
  • large lengths of the abrasive belt to guarantee a sufficient grit cooling before the next operation and thus a long service-life
  • easy adjustment of the abrasive belt by the hand wheel mounted outside the guard for tracking the true running  of the belt, as well as by a telescopic quick tension-removing lever for quick belt change

pdf icon Print / Download Greif D20-0-0 bench top Linisher - polisher Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
