Guyson International Kerry SA Autotrans Mini

- Stock No
- DS1022
- Manufacturer
- Guyson International
- Model
- SA Mini
- New or Used
- Used (Second Hand)
- Process Stages
- Single axis lift
- Other Info
- Process lifting device
- Location
- Our Central Warehouse, Aldridge, UK
- External Dimensions (WxDxH mm)
- 770 x 950 x 2350mm
Description

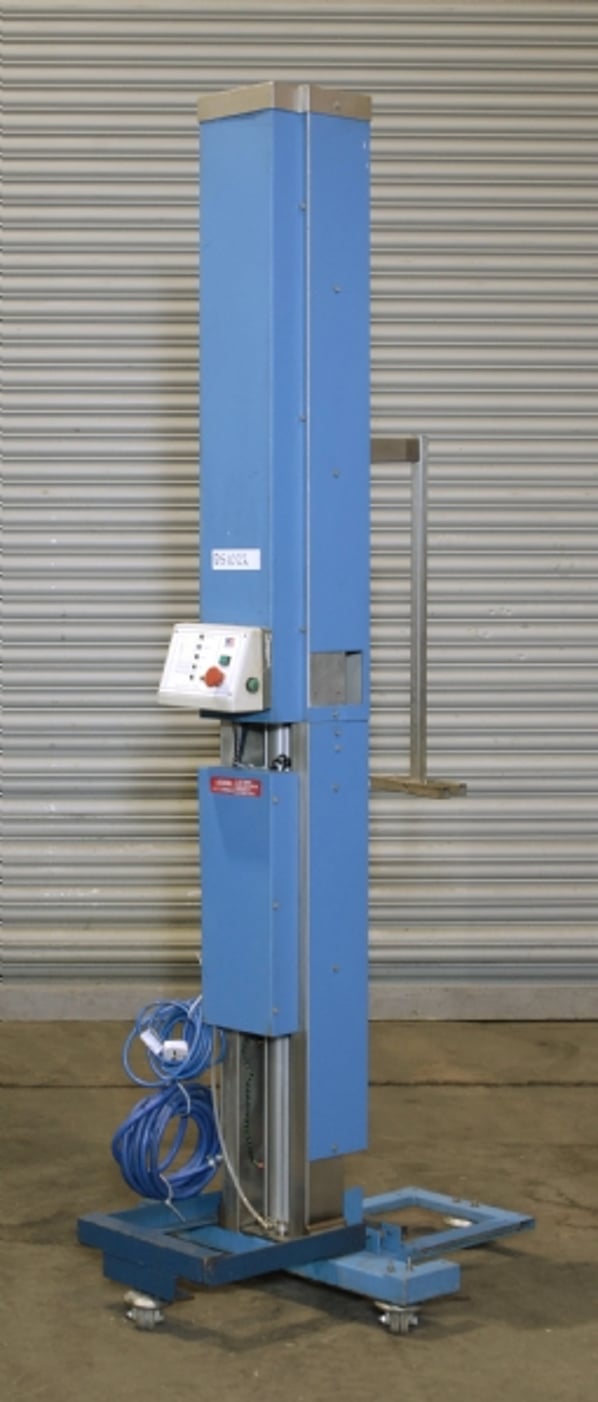

GUYSON AUTOTRANS SINGLE AXIS LIFT
The Kerry Autotrans Single Axis Mini lift was originally designed by Kerry to work with their cleaning systems to provides a controlled lift, in and out of the cleaning tank.
Cost reductions result from controlling the speed of basket entry and withdrawal from the vapour zone, by reducing solvent ‘drag-out’ (the loss of cleaning solution when components are transferred through the cleaning process) and losses to atmosphere caused by disturbance of the vapour blanket.
The controlled action of the lift and the ability to control the immersion length also makes this a useful tool to automate and standardise other immersion process such as aqueous ultrasonic cleaning systems.
The Autotrans SA is a cost-effective work carrier providing vertical movement of loads up to 10 kg.
Autotrans SA provides high positional accuracy and a maximum speed of 3 metres per minute. Movement sensors ensure personnel safety and prevent damage to the system in the event of an obstruction
Key benefits:
• Ease of use
• Faster processing
• Higher throughput
• Increased flexibility of load content
• Reduced running costs
• Consistent operation
• Retrofit to existing systems
TECHNICAL DATA - AUTOTRANS MINI
• Load capacity 10 kg
• Overall height 2500mm
• Vertical speed* 3m/min
• Accuracy +/- 1mm
• Program capacity One program, factory pre-set
• Air supply 5.5 bar at 20 litres per minute
Print / Download Guyson International Kerry SA Autotrans Mini Datasheet
Additional files
Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
