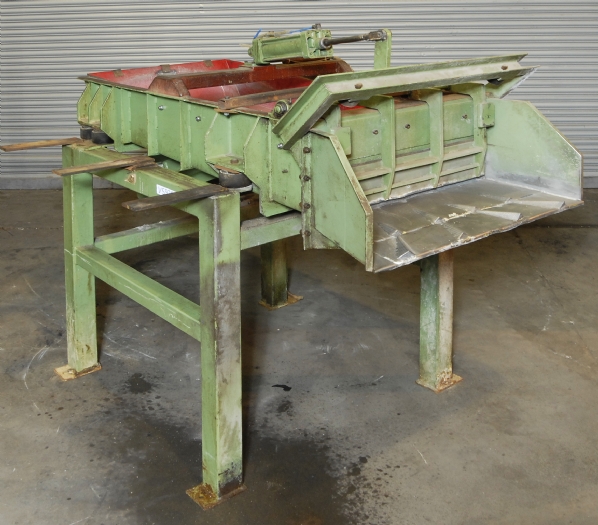

Rosler Vibratory Transfer Hopper

Stock No

VS970J

Manufacturer

Rosler

Model

R15/8/3.5 PR So

Year of Manufacture

1996

Serial

15493/96 08

New or Used

Used (Second Hand)

Type

Linear Transfer Hopper

Location

Our Central Warehouse, Aldridge, UK

Weight (kgs)

690kgs

External Dimensions (WxDxH mm)

1400 x 2000 x 1850mm

Description

A rosler Induction Vibratory Feed Hopper with closure gate for the controlled feed and payout of mass small parts into secondary processes

The vibrating deck acts as an intermediate storage and distribution hopper by means of both an induction vibratory motor.

The effect of the vibration causes the components to level out into a uniform layer and transfers them in a steady linear motion across the deck.

The induction motor can also be readily fitted with an inverter speed control to enhance the speed range of which the deck can transfer its payload.

Typical applications may include:

Controlled parts loading into vibratory finishing equipment such as process bowls and dryers
Controlled parts loading into wash and dry tunnels
Controlled parts loading onto mesh belt furnaces
Controlled feed onto weigh check systems
controlled feed into batch process machinery
Controlled loading into plating barrels
Controlled loading into belt and barrel blast machinery.

Details

Work envelope 600 x 1600 x 220mm
height of exit/outlet from floor level - 1055mm
Supply voltage 415v / 50Hz

Print / Download Rosler Vibratory Transfer Hopper Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
