Machines & equipment for sale

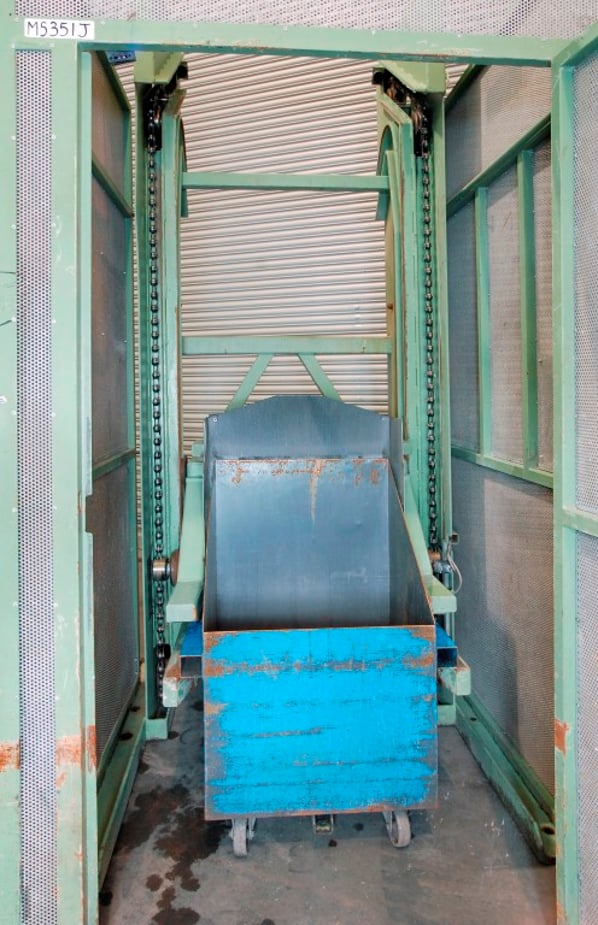

Rosler Tipper Loader

Stock No
MS351J
Manufacturer
Rosler
Model
Tipper Loader
Year of Manufacture
1996
Serial
15496/96-08
New or Used
Used (Second Hand)
Capacity
150l and 500kg
Type
Mechanical lift and lip loader
Location
Our Central Warehouse, Aldridge, UK

Description

The Rosler lift and tip machine has been designed to charge bulk feeding equipment with varying components, often having very high bulk densities. This especially covers metal components to be fed into Mass processing, metal finishing machinery, heat treatment lines and electro-plating installations.

Heavy Duty designed with “Jam Free Guide ways for the “hoist chair” make this a reliable and robust piece of equipment for use in the workplace.

The complete emptying of the containers achieved as the hoist chair tips beyond 90°, to clear the container. The locking bar in the hoist chair helps lock in the container whilst inverted..

Tipping in Steps is possible which allows partial filling of e.g. storage feeders for optimised disentangling of very difficult products.

Dimensions

Hoist chair capacity 600 x 600 x 500 mm
Hoist chair overall dimensions 600 x 600 x 1020 mm
2 x Chairs available per lift
Lift and discharge height 2400 mm

NOTE External guarding no longer available.

pdf icon Print / Download Rosler Tipper Loader Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
