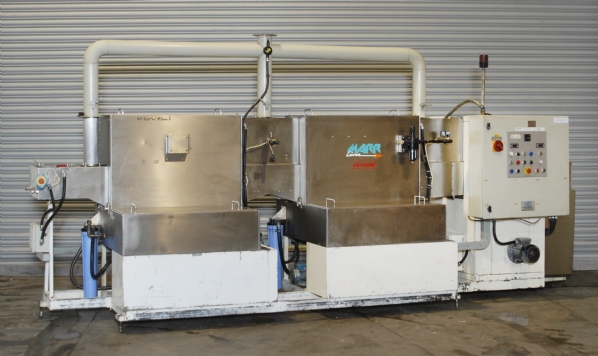

Guyson Marr 3 stage wash

- Stock No
- DR999
- Manufacturer
- Guyson Marr
- Model
- MARRLINE 3 ST
- Year of Manufacture
- 1999
- Serial
- 802281
- Work Envelope (WxDxH mm) [?]
- 200 x 200 mm
- Process Stages
- Wash, rinse and dry
- Other Info
- Complete with return conveyor
- Location
- Our Central Warehouse, Aldridge, UK
- Weight (kgs)
- 885kgs
- External Dimensions (WxDxH mm) [?]
- 4600 x 1300 x 2130mm
Description
The Guyson Marr-Line can provide a tailored solution for most washing, rinsing, drying and coating applications for a wide range of fixtured components.
The Guyson Marr-Line fixtured wash system provides the very latest in safe aqueous technologies, ideally suitable to incorporate into a modern cellular workflow environment
The Guyson Marr-Line system delivers:
• Stringent cleanliness standards
• Targeted wash spray patterns for optimum cleaning results
• Elimination of manual handling
• Removal of bottle necks and buffer stocks
• Fixturing to suit your specific component
Since heightened awareness of safe aqueous industrial cleaning was introduced by the Montreal Protocol (to eliminate the use of substances that depleted the ozone layer), and with the recent introduction of the ‘Solvent Emissions Directive' or SED (replacing environment damaging solvents), it now makes even more sense to look at how you could introduce a Guyson Marr-Line aqueous cleaning system into your cleaning regime.
High flow spray jets deliver maximum power in both the wash and rinse sections, driven through stainless pumps and pipework.
Full stainless construction throughout ensures that your Marr-Line will remain corrosion free throughout its life cycle.
All heated tanks are fully lagged for maximum heat conservation and have an automatic water fill system that allows for continuous running. Low water level sensors will switch off the machine, safeguarding the equipment in the event of failure.
The Marr-Line component rinsing not only removes excess wash solution but also delivers high cosmetic component quality standards with spot and stain free surfaces if used with de-ionised water.
Component drying is an important consideration and is achieved by the re-circulating hot air oven in the final stage and this will be able to evaporate the final moisture residue before the component moves through and back to the start of the conveyer.
Keeping your Marr-Line in peak condition could not be easier, as the machine incorporates a range of productivity and maintenance benefits including features such as washable filters, automatic water fill and low level water sensors.
The machine has removable panels fitted to each wash and rinse section, allowing full service access. The spray bar units are fitted with quick release couplings, so that they can be unclipped and the whole assembly removed for bench maintenance.
Electrical details.
3ph / 400v / 50Hz
max motor amps - 12.5
Power consumption: 43kW
Print / Download Guyson Marr 3 stage wash Datasheet
Additional files
Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
