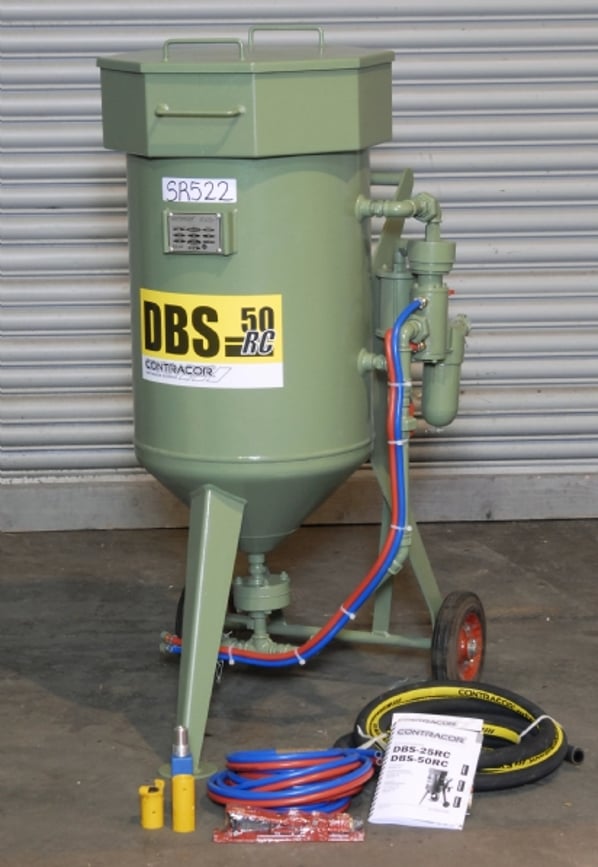

Contracor A NEW DBS-50RC Blast Package


- Stock No
- SR522
- Manufacturer
- Contracor
- Model
- DBS-50RC Package
- Year of Manufacture
- 2012
- New or Used
- New
- Work Envelope (WxDxH mm)
- N/A
- Work Handling Method
- Manual operation
- Other Info
- NEW smaller size portable unit
- Weight (kgs)
- 73kg
- External Dimensions (WxDxH mm)
- 415 x 600 x 1180mm
Description
Contracor is Germany’s leading manufacturer of abrasive blasting equipment for metal surface preparation, surface finishing, surface cleaning and corrosion control. Its products are all built to exacting German standards and represent a premium quality
The Contracor pressure pot blasting system 50, litre capacity pot with hoses, deadmans handle, blast nozzle and remote control valve, if fact everything you need to start blasting.
The unit comes as standard f with a CAF 3 moisture separation trap for the protection of both the blast media and internal parts of the system, giving the units a long lease of life even when used with compressed air of a lower quality.
FIELD OF APPLICATION
Abrasive blasting of metal constructions, buildings, bridges, reservoirs, piping and concrete surfaces.
Cleaning up to grade SA-3.0. Performance up to 37 m2/h.
DESIGNED TO WORK WITH
any dry abrasives, max. grain size 4 mm.
STANDARD FEATURES OF THE DBS-50RC, 5m Twinline, 5m ExtraBlast-13, NHP-0, CQP-0, NTC-5.0
- 50-liter capacity tank
- Sieving screen
- Bowl cover
- Media flow control valve
- high-performance moisture separator
- inspection door
- quick hose couplings CFT
- remote control device with a pneumatically-operated RC main valve, deadman handle, 5-meter twin-line hose, hose fittings
Technical data:
DBS-50RC
Max. working pressure, bar 12
Vessel capacity, liter 50
Working temperature, –10 — +50
Vessel diameter, mm 415
Vessel height, mm 1180
Weight, kg 73
Print / Download Contracor A NEW DBS-50RC Blast Package Datasheet
Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
