Canning Heavy Duty Centreless Linishing or Polishing Machine
Heavy duty suitable to process rods or tubes 8mm-152mm. 11kw/15hp main drive enables rod or tube to be ‘polished’ mops 356mm dia x 152mm wide or ‘belt linished’ belts 2743mm long x 152mm wide. Generally arranged and includes ;
*Quick rate of feed adjust
*Automatic work rest adjust to material diameter.
*Self contained triangulated backstand equipment for belt linishing option. (Peripheral speed 1829/2286mt.per min).
*Contact wheel 356mm.dia x 152mm wide
Overall dimensions 1524 x 991 x 1524mm high
Weight 1100kgs
- Stock No
- PH462
- Manufacturer
- Canning
- Model
- 2718C
- New or Used
- Used (Second Hand)
- Other Info
- Capacity upto 150mm Ø
- Refurbished Price
- Login or Register for price/quote.
- Run & Checked Price
- Login or Register for price/quote.
Print / Download Canning Heavy Duty Centreless Linishing or Polishing Machine Datasheet
Additional Pictures

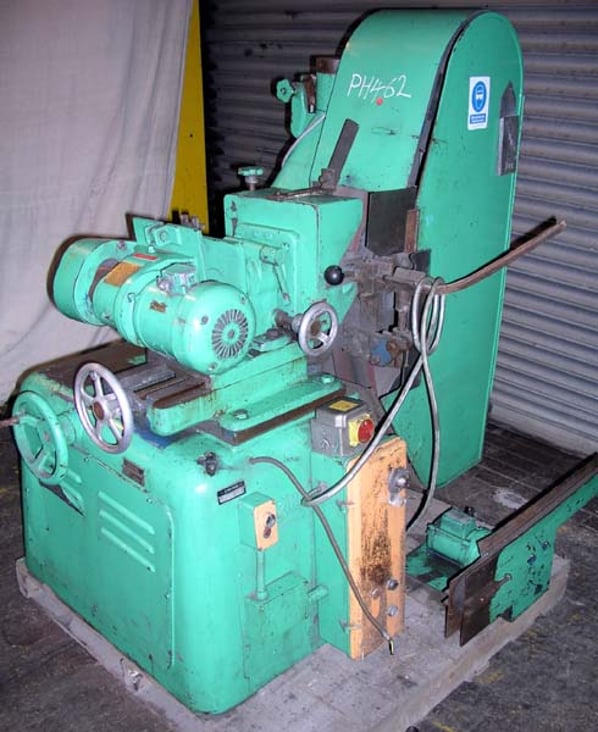

Canning 2718C
Canning 2718C
PHOTOGRAPHS TAKEN PRIOR TO REFURBISHMENT.
