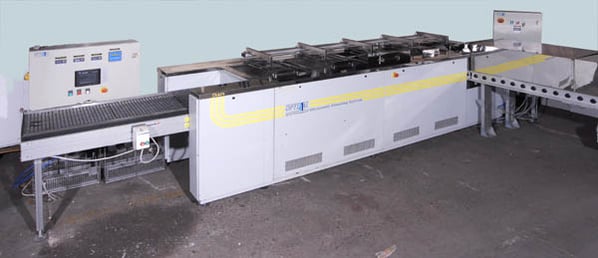

Optimal Conveyor Fed Multi Stage Ultrasonic Cleaner - Special Offer
4 tank Ultrasonic cleaner with a conveyorised out-feed to a separate hot air tunnel dryer. Alan Bradley PLC controlled with separate digital temperature controllers for each of the heated stages. Maximum basket/carrier dimensions of 430 x 460 x 240mm deep.
The basket/carrier is moved through the cleaning stations by an automatic lift and walk common rail transfer arm.
All tanks are constructed of Stainless steel with chemically inert plastic pipework.
Stage 1 Conveyor fed load end with basket/carrier detection for auto pick-up.
Stage 2 Heated U/S cleaning tank with base mounted transducers, pumped filtration and automatic water make-up facility.
Stage 3 Heated rinse tank with pumped filtration and automatic water make-up facility
Stage 4 Spray rinse tank with filtration and automatic water make-up facility
Stage 5 Heated De-ionised rise tank with pumped filtration, DI water quality monitor-display unit and automatic water make-up facility
Stage 6 unload/drain station with transfer to dryer conveyor by way of pneumatic pusher cylinder, air knife blow-off on exit.
Stage 7 conyeyorised hot air tunnel dryer
Manufactured 2003
Serial Number 03/221
- Stock No
- DL617J
- Manufacturer
- Optimal
- Model
- PTWD
- New or Used
- Used (Second Hand)
- Work Envelope (WxDxH)
- 430 x 460 x 240mm deep
- Process Stages
- 7 stage
- Other Info
- Manufactured 2003
- Refurbished Price
- £20,000 (+ VAT) Login or Register a quote.
- Special Price (sold as seen)
- £8,000 (+ VAT) Login or Register a quote.
- Special Price (run & checked)
- £10,000 (+ VAT) Login or Register a quote.
- Special offer ends
- 15 February 2012 00:00 while stocks last
Print / Download Optimal Conveyor Fed Multi Stage Ultrasonic Cleaner Datasheet
PHOTOGRAPHS TAKEN PRIOR TO REFURBISHMENT.
