Donaldson Torit (DCE) AN Rotary Discharge Valve

Used / Second Hand

Run & Checked Price [?]
£ Login or Register for price
Availability:
In stock now
Stock No
EW1518
Manufacturer
Donaldson Torit (DCE)
Model
AN 10
New or Used
Used (Second Hand)
Other Info
Airlock rotary valve
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
120
External Dimensions (WxDxH mm)
1020 x 480 x 585

Description

Donaldson Torit AN Rotary Airlock

Donaldson Torit AN Rotary Valves are an excellent choice for dust collector and cyclone applications. The flexible tip design allows the airlock to handle stringy or fibrous products that jam other types of airlock.

The AN Rotary Valves flex tip material is excellent for abrasive applications such as glass cullet and other natural minerals.

  • The Donaldson Torit series airlock is an excellent choice for most dust filter and cyclone applications.
  • The flexible tip design allows the airlock to handle stringy or fibrous products that jam other types of airlocks.
  • Typical materials include paper, wood products, animal feed and other agricultural products.
  • The flex tip material is also excellent in abrasive applications such as glass cullet and other natural minerals.

Benefits of rotary valves

  • Fast, efficient automated dust collection and disposal.
  • Continuous dust disposal that keeps hopper and collector operating at peak performance.
  • Reduced dust collector maintenance time and cost.
  • Trustworthy, high quality technology from the leader in industrial air filtration.

Standard features

  • Full welded carbon steel construction
  • 275mm Flanged inlet and outlet Adapters
  • .75kW 440V / 3 TEFC gear motor
  • 1.6 ft³ valve capacity
  • 22 rpm rotation speed
  • Heavy duty chain drive
  • Six vane rotor
  • Replaceable polymer tipped vanes
  • Safety chain guard



pdf icon Print / Download Donaldson Torit (DCE) AN Rotary Discharge Valve Datasheet

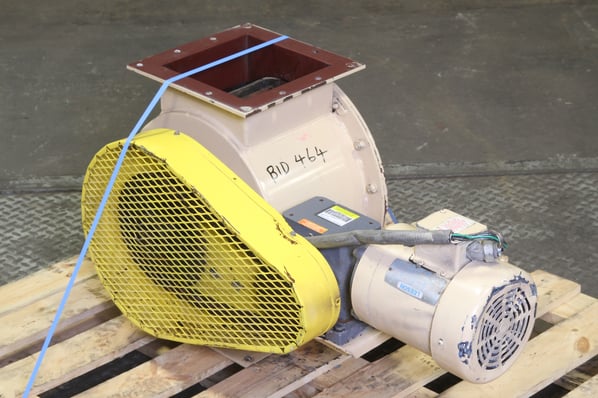

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
