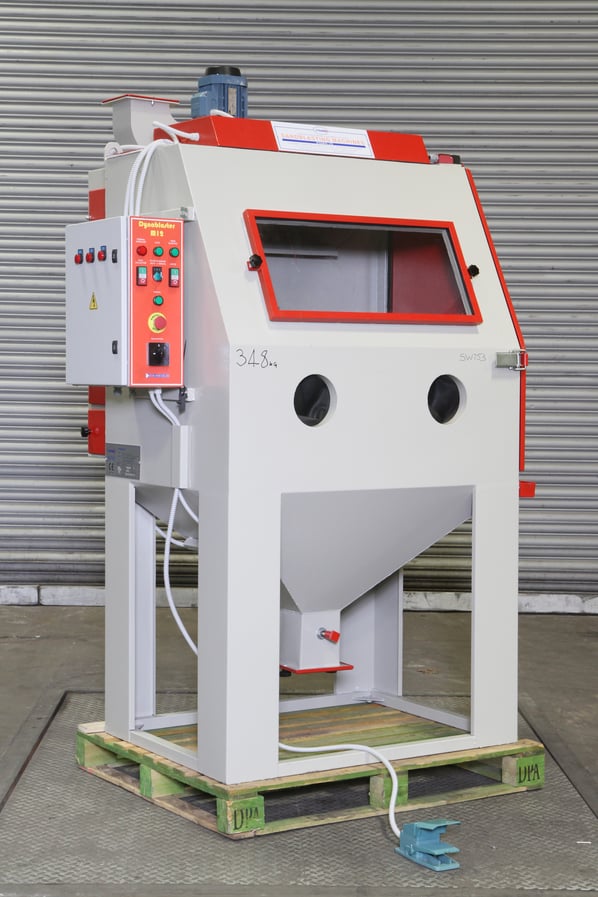

Dynamiki Dynablaster M-12 Shot Blast Machine

New

Price [?]
£ Login or Register for price
Guarantee
1 year manufacturer guarantee
Availability:
In stock now
Stock No
SW753
Manufacturer
Dynamiki
Model
M12
Year of Manufacture
2017
Serial
DB-M12/001 - 17
New or Used
New
Work Envelope (WxDxH mm)
1000 x 800 x 950
Work Handling Method
Manual
Other Info
New and unused
External Dimensions (WxDxH mm)
1350 x 1200 x 2300

Description

The M11 suction feed cabinet is a general purpose heavy duty workshop machine suitable for a wide range of blasting applications.

If your operations involve cleaning with chemicals, acid etching or dipping, liquid honing, wire brushing, sanding, deburring, grinding or peening, Blasting cabinets will normally expedite work, improve quality and eliminate the environmental problems associated with these common finishing processes.

Built for production, these rugged cabinets enable you to perform a long list of tasks ranging from blending surface flaws to removing foreign matter, such as residue from moulds, without affecting tolerances. By simply varying air pressure and blast media, you can perform almost any surface finishing job more quickly and precisely than with alternative methods.

DYNAMIKI cabinets can be specified with either suction or pressure blast systems - a pressure system being the preferred choice for faster production and more precise control of media at both high and low operating pressures. In addition, they are available in seven sizes and loaded with standard features that reduce operating and maintenance costs.

Modular design, plus an extensive range of factory options, lets you select a system that's just right for your applications.

Features + Benefits

  • Perfect for surface preparation on any type of irregular surfaces where other forms of preparation such as sanding may be difficult
  • Ideal for removing paint, rust, scale and oxidation on a variety of surfaces or the preparation of surfaces for bonding
  • 40–100 psi operating range
  • Air volume consumption of 15–30 CFM @ 80 psi
  • Extra-large tempered glass viewing window measuring 720 x 350 mm, offering the operator a wide viewing angle.
  • Oversized door opening of 700 x 900 mm. allows the operator to easy access to load a wide variety of items into the blast cabinet. Great for heavy or bulky items due to the low loading point
  • Large internal work area of 1000 x 800 x 950 mm allows the operator to easily manoeuvre bulky items within the cabinet
  • Heavy-duty 14-ga. steel construction provides strength and a stable rigid frame
  • LED light kit and associated dust collector helps maintain good visibility during heavy blasting operations
  • Attached rear mounted 1.0kW dust collector helps minimise the floor space by allowing convenient siting
  • Replaceable protective window and light underlay
  • Foot pedal controlled Super 200 venturi blast gun helps to reduce operator hand fatigue, and is fitted with heavy duty 7-9mm diam Tungsten Carbide nozzles for long service life
  • Convieiently located hopper blast media flow adjuster for easy blast intensity adjustment
  • Telescopic manoeuvrable static gun holder for hands free operation
  • Removable heavy duty hand operated rotary table
  • Door safety interlock to isolate the blaster whilst the door is open
  • Fitted Air pressure regulator with filter element and gauge: 0-16 bars and automatic drain valve
  • Attached electrical control panel for ease of use
  • Internal hand operated air wash gun for clean down
  • Heavy duty twin arm gauntlets
  • Large capacity 100kg storage hopper

Specifications Dynablaster M12

Overall Dimensions135012002300
Interior Dimensions1000800950
Front Door700900
Viewing window720350



pdf icon Print / Download Dynamiki Dynablaster M-12 Shot Blast Machine Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
