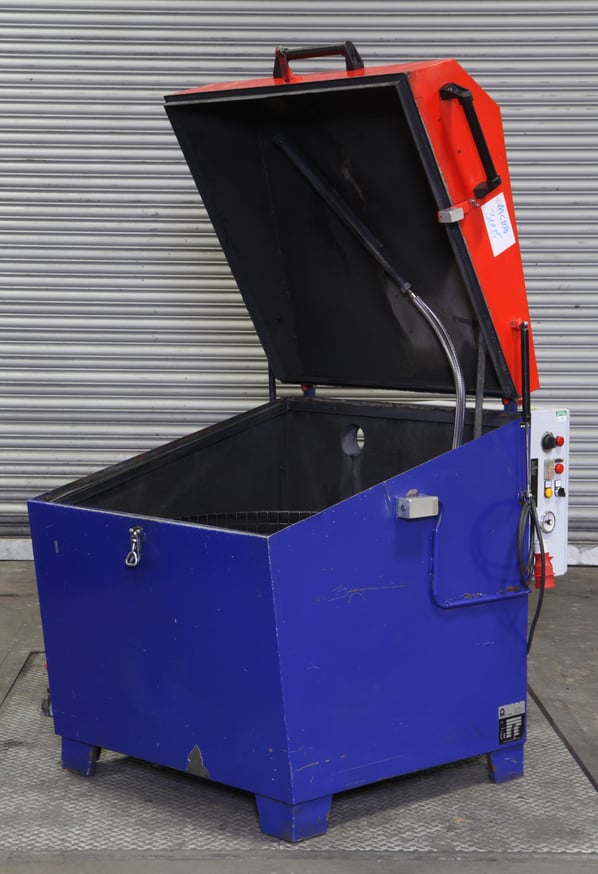

Metalas MC100 Top Loading Spray Washer

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability
Available for immediate collection
Stock No
DW1204
Manufacturer
Metalas
Model
MC100
Year of Manufacture
1999
Serial
50031015
New or Used
Used (Second Hand)
Work Envelope (WxDxH mm)
900 Ø x 400
Process Stages
Single stage hot detergent wash
Other Info
Compact Cellular Washer
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
225
External Dimensions (WxDxH mm)
1175 x 1300 x 1155

Description

This Metalas MC100 top loading wash is a competitively priced machines which require less space to achieve maximum cleaning efficiency with minimum operating costs.

Metalas rotary spray cleaners put a stop to all other time consuming and high cost cleaning methods.

Metalas - cleaning machines are specially designed for cleaning components in industrial and maintenance workshops during both manufacture and assembly, as well as refurbishing in the motor vehicle trade and all at minimal cost.

The surprisingly effective and thorough cleaning is obtained by the combination of high velocity spray jets, a large volume of heated detergent water and bouncing whirlpool action which cleans the dirtiest parts in 5 to 15 minutes and all within a totally enclosed system.

The machines clean everything, not only ferrous and non ferrous metals but also plastics, ceramics etc.

Standard Features:

* Magnetic lid locking
* Wash timer 0-60 mins.
* Temperature controlled thermostat 0-120°C
* Heating Switch
* Heating pilot light
* Lid protection switch
* Covered liquid tank
* Continuous return flow filtration
* Drain valve 2" BSP
* Immersion heater
* Switch control panel box fitted with mains isolator
* Thermal motor overload protection*

Specifications of the MC100

Overall dimensions

Width 1175 mm
Depth 1300 mm
Height 1155 mm
Height (lid open) 2010 mm

Basket dimensions

Loading surface Ø920 mm
Useful height 550 mm

Technical Details

Admissible grid load 350 kg
Weight of machine 225 kg
Capacity pump/motor 18 m³hr / 2.2 kw
Jet pressure 2.2 ato
Liquid storage 100 ltr
Electric heating 6 kw
Spray driven turntable

Electrical supply

13.5A
400v
3ph
8.5kw

pdf icon Print / Download Metalas MC100 Top Loading Spray Washer Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
