W Canning Model 2435, 3 Gallon Centrifugal Spin Dryer
- Stock No
- W Canning
- Model 2435
- New or Used
- Used (Second Hand)
- 3 gallon / 75 litres / 45kg
- Heated centrifugal spin dryer
- Other Info
- Heavy duty build quality
- Our Central Warehouse, Aldridge, UK
- Weight (kgs)
- External Dimensions (WxDxH mm)
- 660 x 850 x 930
Canning 3 Gallon heavy duty Industrial heated spin dryer with braked motor and lid interlock.
These machines save time and money in drying small items after plating, cleaning, barreling and other similar wet processes.
The traditionally built machines include a heavy cast iron base and running gear which withstands any out of balance forces when the basket is initially loaded. The body and lid are constructed of rolled steel sections.
The galvanised basket is perforated with 3mm holes allowing small items such as nails and pins to be processed without loss.
The barrels have the following advantages:
- Eliminates the use of absorbent materials
- Stop and start system with braked motor and lid interlock allowing the baskets rotation to cease prior to the lid being opened.
- Removable basket for ease of loading and unloading
- Electrical heating elements mounted in a side box to avoid contact with parts and moisture, with the air recirculation being created by the basket base integral fan design
- The heating is arranged to automatically stop and start with the machine saving on energy.
Spin dryer specifications
- Removable Basket size: Ø450 x 280mm deep.
- Average drying time 2-3mins
- Load capacity 45kg
- Heating capacity 2.4kW
- Overall size 660 x 850 x 930 mm high
Motor details, 0.75kW, 3ph, 2amps, 1380rpm

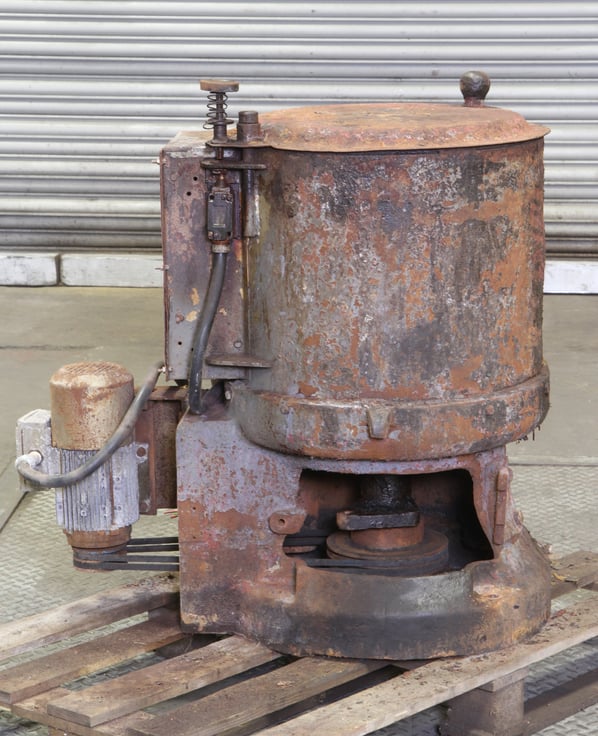

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
