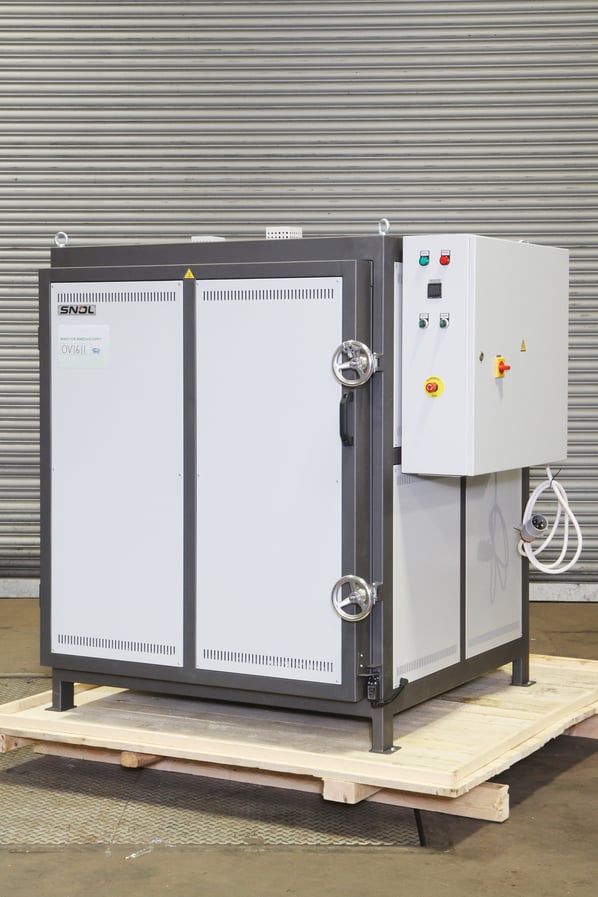

SNOL 970/260 Batch Oven

New

Price [?]
£ Login or Register for price
Guarantee
1 year manufacturer guarantee
Availability
Available for immediate collection
Stock No
OV1611
Manufacturer
SNOL
Model
970/260
Year of Manufacture
2017
Serial
014
New or Used
New
Internal Size (WxDxH mm)
W 950 x D 950 x H 1200
Max Temp
260 °C
Other Info
NEW Build Oven
Weight (kgs)
572 kg
External Dimensions (WxDxH mm)
W 1600 x D 1700 x H 1725

Description

From our range of SNOL large general purpose industrial low temperature batch ovens

SNOL is one of the leading industrial oven manufacturers in the world. The company is based in Lithuania with subsidiaries in Russia, Belarus and Ukraine and with oven and furnace distribution companies throughout Europe.

SNOL and Riley Surface World is a unique partnership. It combines Europe’s finest industrial and laboratory oven manufacturer with a UK company renowned for its high levels of industry knowledge, service and technical support.

The 970/260 Model is an industrial 970ltr 260°C temperature range batch oven

SNOL's range of industrial batch ovens sets the standard for a wide range of industrial thermal processing applications with standard features that include:

  • Excellent performance and reliability (Steady state without charge ± 2°C with charge ±5°C)
  • Installed heating power 12kW  3 phase + Neutral from mineral insulated metal sheathed elements
  • The external construction is clad in mild steel sections, with a powder coated exterior
  • High thermal efficiency is achieved through the use of low thermal mass insulation
  • Air circulation is critical for efficient and uniform heating and horizontal air flow is achieved via heavy duty impeller running at 1400rpm.
  • Fitted with heavy duty side hinged door,
  • Adjustable chamber ventilation to exhaust smoke or other fumes
  • Micro processor Omron E5CC Programable Temperature controller and SSR heating power control
  • Data entry port for running cables, pipes and measuring devices into the chamber.
  • Twin shelves supplied with 5 shelf runners
  • Ideal for a vast range of low temperature thermal processes such as drying, curing and pre-warming

Technical specifications:

Temperature range max  260ºC

Chamber dimensions, mm W 950 x D 950 x H 1200

Chamber Material St. steel

Volume L 970

External dimensions, mm W 1600 x D 1700 x H 1725

Electrical specifications

Power kW 12

Voltage V 400

Weight

kg 572

pdf icon Print / Download SNOL 970/260 Batch Oven Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
