B O Morris Non stop Model 401 Polishing Lathe

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Run & Checked Price [?]
£ Login or Register for price
Availability:
In stock now
Stock No
PV1078
Manufacturer
B O Morris
Model
Non Stop 401
Serial
A1118
New or Used
Used (Second Hand)
R.P.M.
3000
Hp/Kw
2 x 3hp (2.2kW)
Other Info
Independent end single speed model
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm)
1400 x 750 x 1250

Description

The Morrisflex Model 401 is a heavy duty independently controlled double sided pedestal mounted polishing machine that is equipped with 4 heavy duty bearings for smooth running and a long service life.

This traditionally built heavy duty second hand Morrisflex model 401 Polishing lathe is predominately used with polishing mops, buffs and bobs, but can also be used with a wide range of rotary abrasive tools, ie abrasive impregnated nylon wheels, abrasive brushes, flap wheels, deburring wheels, and wire wheels etc.

The body of the machine is manufactured from cast aluminium keeping the weight down and offering excellent heat dissipation. The installed twin spindles are powered by robust high torque motors offering speeds of 2800 per end, making them suitable for a wide range of applications and materials.

Benefits

4 bearing design guarantees long life and vibration free running greatly reducing the risk of vibration related industrial conditions such as white finger.

Independent ends reduces power consumption whilst being used by a single operator and allows two operators to work simultaneously and independently of each other.

Features and specifications.

  • Motor sizes: 3hp 2.2KW per motor.
  • Heavy duty 4 bearing spindles
  • Contact wheel/buff diameters: 250 mm with taper spindle ends or 350 mm with parallel ends

Optional extra's

  • Parallel or tapered spindles ends
  • Variable speed motor drives
  • Dust extractor
  • Dust collection hoods
  • Back stand idlers / linishing and belt grinding attachments

Dual Ended independant start polishing lathe

SUPPLY = 400/440
AC = 3/50

pdf icon Print / Download B O Morris Non stop Model 401 Polishing Lathe Datasheet

Additional files

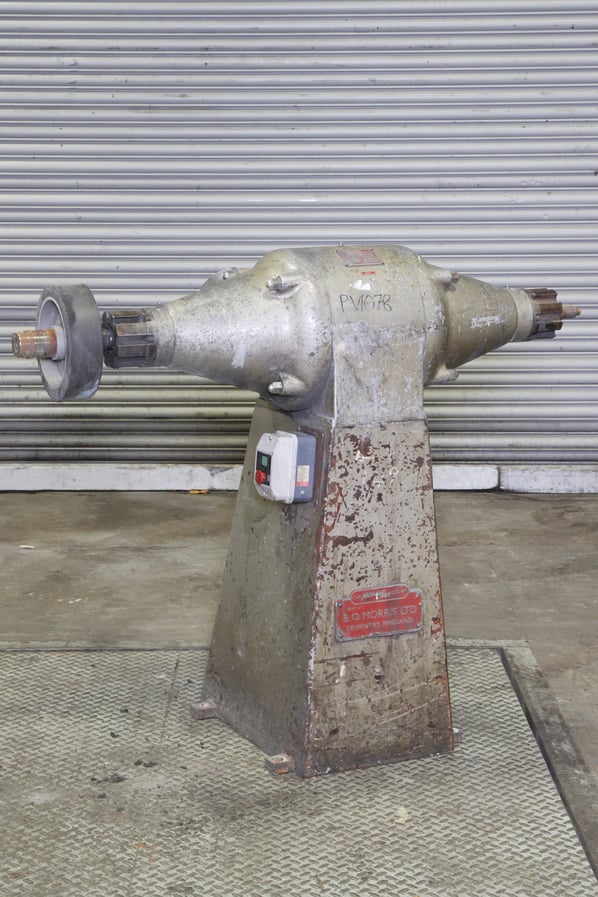

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
