PERS Semi-automatic High Energy Centrifugal Disc Finishing Systems

New

Price [?]
Please call on +44 (0) 1922 45 8000
Guarantee
1 year manufacturer guarantee
Availability:
Available subject to build time
Stock No
NEW045
Manufacturer
PERS
Model
LDGB, LDGS, LDGSU
Year of Manufacture
New
New or Used
New
Capacity
50-230 litres
Type
High energy spinning disc m/c

Description

Jump to technical info

These ‘All New’ High Energy Disc Systems have been developed for the polishing, deburring and radiusing of small parts in the shortest possible processing time.

Each semi-automatic centrifugal finishing bowl has a powered turnover to empty the bowl of media and components. The LDGS and LDGSU include a built in separation screen making these machines very compact yet highly efficient.

PERS started designing these high energy disc finishers by analysing machines in the marketplace and designing out shortfalls. This includes, amongst many improvements, a simpler disc wear adjustment system that isn’t labour intensive to maintain.

Achievable processes range from gentle surface smoothing to polishing through to aggressive grinding. Compared to the more conventional vibratory finishing equipment, the centrifugal disc finishing technology offers an advantage of between 10 to 30 times higher performance.

High Energy Centrifugal Disc Finishing Machine Benefits

  • Short process time for deburring, polishing and radiusing
  • Ideal for small and medium size work pieces
  • Highly durable hot-poured Dupont Class 1 polyurethane coated work container and disc
  • Omron digital touch screen operator panel with process timer
  • In built separation screen (on some models)
  • Self-contained water and solution re-circulation system (on some models)
  • 1 year warranty
  • Sample processing and media advice service
  • Media and compound available

Models

LDGB Semi-automatic – Motorized Discharge

LDG 50B

50 litre



LDG 50B / L

50 litre

With Lid

LDG 80B

80 litre



LDG 80B / L

80 litre

With Lid

LDG 120B

120 litre



LDG 230B

230 litre



Options: Compound and Water Re-circulation (LDGBU models)

LDGS Semi-automatic – Motorized Discharge  Separation Screen

LDG 50S

50 litre

LDG 80S

80 litre

LDG 120S

120 litre

LDGSU Semi-automatic – Motorized Discharge – Separation Screen
Compound and Water Recirculation

LDG 50SU

50 litre



LDG 80SU

80 litre

Demonstration model in our showroom

LDG 120SU

120 litre



Sample processing and media advice service

For complete peace of mind PERS will process a sample of your product to the finish you need. Just provide a sample to Riley Surface World and you will receive a finished sample complete with media, compound and process recommendations.

This will ensure the machine you buy matches your production needs and will demonstrate the long term commitment to service the Riley Surface World and PERS partnership delivers.

Applications

High energy centrifugal disc finishing is ideal for deburring, surface grinding, edge breaking/radiusing and polishing of stampings, castings, forged or machined parts. The applications are practically unlimited ranging from very delicate, thin shim washers to heavy gear components.

High energy centrifugal disc finishing has a particular application with non metallic parts like rubber and plastics as well as part-on-part finishing.

The centrifugal force of the rotating spinner (up to 180 RPM) accelerates the components and media up the stationary wall of the work bowl. As the mix moves up the wall of the bowl it loses energy and the parts and media fall back onto the rotating disc. It is then accelerated back up the wall again and the process repeats.

The process can be tailored to a range of applications by varying the rotation speed of the disc, the volume of the water/compound solution and the media type. These parameters change the intensity of the process and can result in either gentle surface smoothing, polishing or even aggressive grinding to suit the component.

Compared to the more conventional vibratory finishing equipment, the centrifugal disc finishing technology offers an advantage of between 10 to 30 times higher performance.

Machine features

Great design

PERS has packed their machines full of great design features to increase reliability and reduce servicing time and costs. For instance, in most centrifugal finishers the bearing housings sit below the work bowl so are prone to water ingress and difficult to access. PERS eliminated both of these trouble spots by placing the bearing in the centre column and incorporating an adjuster so that the disc wear can be easily maintained by simply accessing the adjuster through the top cover.

Another example is the top of the range Dupont Class 1 polyurethane bowl lining that can be refurbished on site by an engineer without the need for it to be sent back to PERS.

High quality construction

The disc finisher work-bowl and disc itself are manufactured with performance and durability in mind from a high carbon steel outer one piece chassis, cast with hot poured DuPont HE high grade class 1 polyurethane wear resistant lining, formed into a dodecagon shape with ribbed grooves for increased grinding action.

The rest of the machine is manufactured to the same standards with material and construction built for a heavy working environment.

Flexible control system

The control system is designed with simplicity in mind and based around the OMRON CP1L PLC, a best in class compact machine controller.

It offers an easy user interface to adjust the process variables of speed and time as well as controlling all of the basic machinery movements and interlocks.

The PLC is matched with a touch screen HMI for a flexible and user-friendly user interface. The Omron NB5Q TW01B HMI has a 5.6 inch, TFT LCD, LED backlit operator touch screen with a resolution of 800x600 and 16-bit high colour. The HMI has inbuilt RS-232C, USB and Ethernet Ports for flexible monitoring, operating, logging and remote access. Programming is supported by Windows operating systems.

Loading and unloading

On all semi-automatic machines have a motorized discharge that tips the bowl.

The LDGB model doesn't include a separation screen. This might be appropriate to the process running, unloading onto conveyor systems, during part-on-part finishing or so a dual screen can be used to grade worn media.

On the LDGS and LDGSU models a separation screen mounted directly onto the lip of the work bowl. The chute contains a swinging grading screen that allows the media and parts to be separated in the unload position, so the parts are easily removed by hand. The media is then automatically returned to the process bowl when brought back to the vertical rest position.

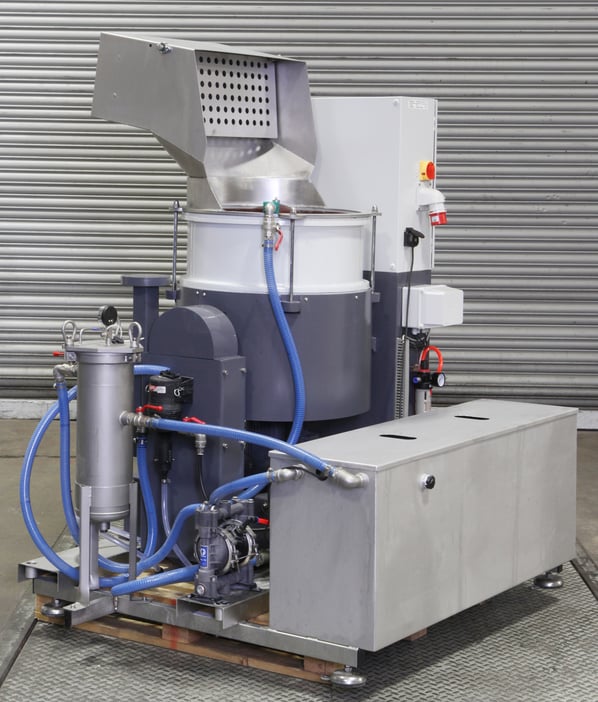

Compound and water re-circulation system (on some models)

The LDGSU model includes a compound and water re-circulation system neatly built onto the machine frame. The advantages of the re-circulation system include significantly reduce labour costs due to the semi automation of the process.

The water and compound dosing re-circulation system incorporates a stainless steel twin section holding tank with level control and auto top-up. The feed water is connected through a Kabi 10-50% hydraulic piston dosing pump allowing the correct percentage of compound solution to be added to the in-feed water at make-up.

The mixed process solution from holding tank two is pumped to the process bowl via a submersible Calpeda GX RH 9GF stainless steel pump. The process solution is drawn through the process bowl to the underlying sump tank.

The used process solution is then pumped via a Graco Husky 716 air operated diaphragm pump through the attached stainless steel filter bag housing, removing the bulk of any waste debris. The filtered solution is then returned to holding tank one,  which in turn overflows back to tank two to complete the cycle.

As the process solution is depleted the level control switches automatically top up the system adding the correct amount of chemical additive, so the system is always primed and ready to go.

Come and view a demonstration

As well as a warm welcome and great coffee Riley Surface World offers a show room with several PERS finishing systems on demonstration.

Call us on 01922 45 8000 or email to book a demo or to discuss your requirements.

pdf icon Print / Download PERS Semi-automatic High Energy Centrifugal Disc Finishing Systems Datasheet
